1-needle flat bed lockstitch machines with bottom feed

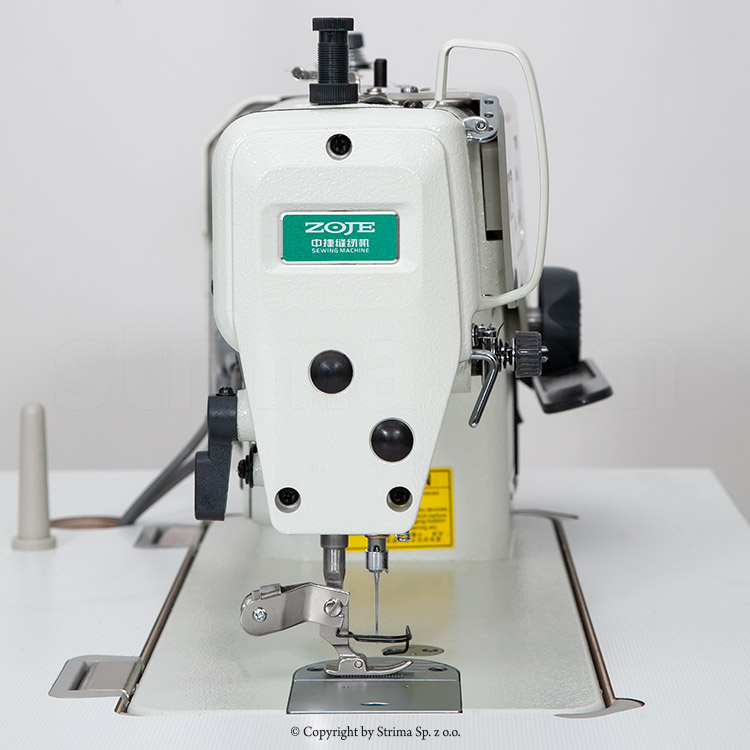

ZOJE A6000-5-G Z SET
Lockstitch machine for medium and heavy materials - complete machine
Description:
Universal 1-needle lockstitch machine for heavy materials. Model with energy-saving AC Servo motor, control box and power switch integrated into machine head (mechatronic "all-in-one" set). Thanks to integration of all elements the machine works quietly and without adverse vibrations. AC Servo motor saves up to 70% energy comparing to a conventional electronic motor or clutch motor. Equipped with vortex fan which sucks the external air and ensures more efficient cooling.
Bottom feed, max. sewing speed 3.500 s.p.m., max. stitch length up to 5 mm, foot lifting up to 13 mm, central lubrication, automatic needle positioning.

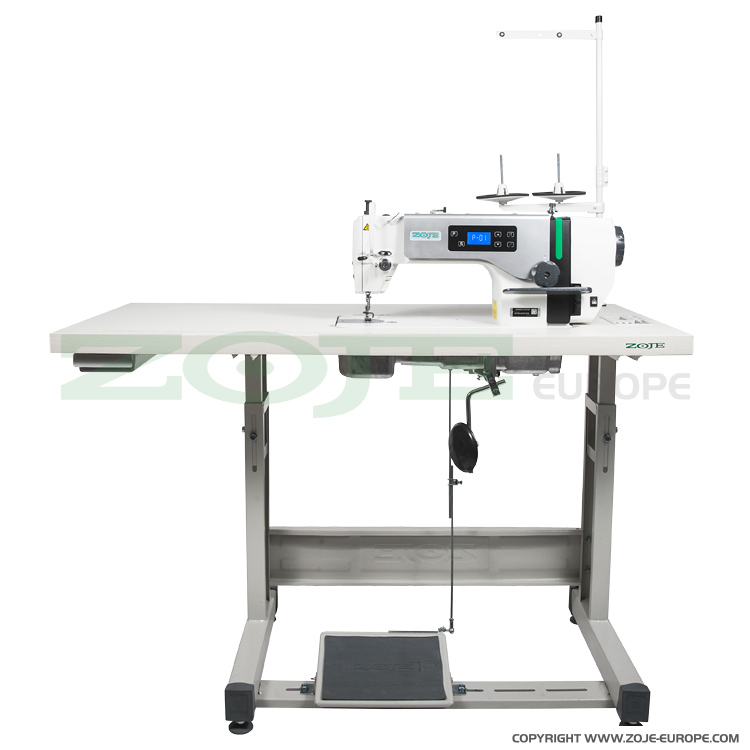

Complete sewing machine with ZOJE stand and table top.
For this machine we recommend SCHMETZ needles system 135x5 or 135x5 SERV7, with correct needle points, depending on the fabric.
Technical specification:
| Type of sewing material | medium, heavy |
| Type of feed | bottom |
| Built-in motor (direct drive) | yes |
| Automatic needle positioning | yes |
| Automatic thread trimming | no |
| Automatic foot lifter | no |
| Automatic bartacking | no |
| Wiper | no |
| Type of lubrication | central circuit |
| Stitch compensation button | no |
| Side trimmer | no |
| LED lighting of working field | yes |
| Max. stitch length | 5 mm |
| Presser foot lift height | 13 mm |
| Max. sewing speed | 3500 s.p.m. |
| Needle system | 135x5 |
| Kit | complete set |
