Description:

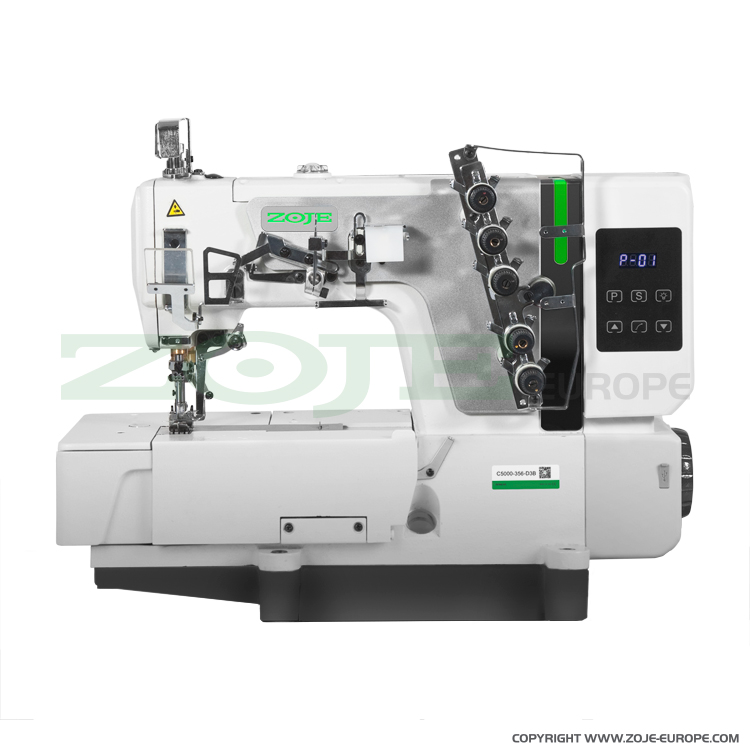

ZOJE C5000-356-02 is a 3-needle, 5-thread interlock with a flat-bed, equipped with a differential bottom feed and automatic needle positioning.

Industrial interlock from the new ZOJE series - V Generation.

Industrial, three-needle interlock

Zoje C5000-356-02 for sewing light and medium fabrics is a mechatronic sewing machine with a high maximum sewing speed - up to 5000 stitches per minute. The needle gauge in this model is 5.6 mm, and the maximum stitch length is 4.5 mm. The machine allows you to sew a classic ladder stitch with the decorative upper interlacing on or off. In Zoje C5000, the presser foot can be raised up to 5 mm. The machine is equipped with a central lubrication system.

Energy-saving five-thread interlock

Zoje C5000-356-02 is a modern sewing machine designed to work quietly and to save energy. The control box built into the machine's head and the efficient AC SERVO motor guarantee up to 70% less energy consumption and almost noiseless operation of the machine. The interlock is equipped with precise LED lighting for the working area.

For Zoje Interlocks we recommend SCHMETZ needles system UY 128 GAS or UY 128 GAS SERV7 with appropriate points.

Technical specification:

Coverstitch machine for applications	universal
Type of sewing material	light, medium
Type of feed	–
Automatic needle positioning	yes
Automatic thread trimming	no
Automatic foot lifter	no
Bed type	flat
Needle gauge of coverstitch machine	5,6 mm
LED lighting of working field	yes
Max. stitch length	–
Presser foot lift height	5 mm
Max. sewing speed	5000 s.p.m.
Built-in AC Servo motor	yes
Needle system	UY 128 GAS
Kit	–
