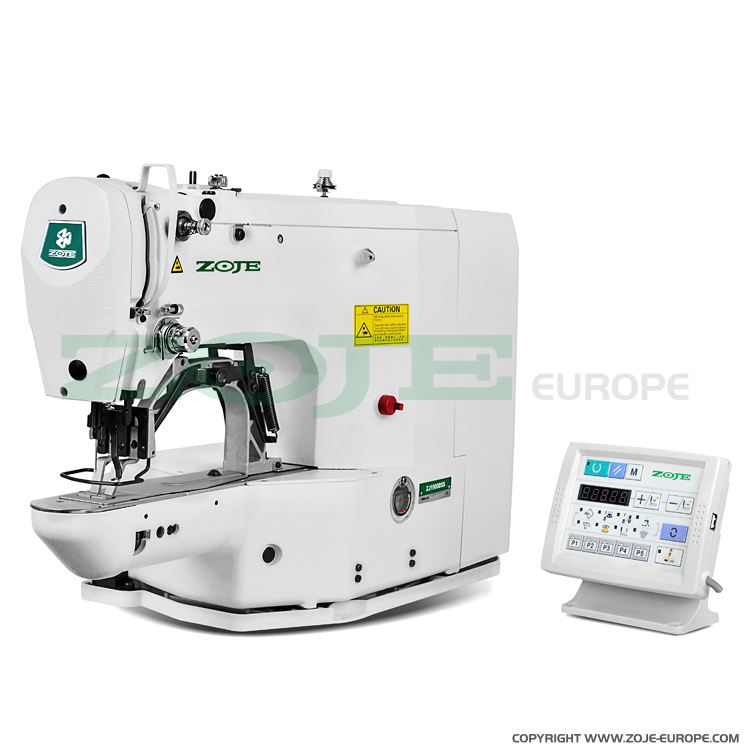

Electronic bartacking machine for light and medium materials - machine head
Electronic bartacking machine for light and medium materials. Machine uses bulit-in fast and precise stepping motors working in x and y axis and mini AC Servo motor mounted in machine head. LED lamp for lighting of working field in standard. Max. sewing speed 3.000 s.p.m.
Serial equipped with clamps 20 x 4.5 mm, which allow to obtain max. bartack length 18 mm. 15 bartacking patterns in standard, that can be modified and saved on the control panel. Direct and fast access to 5 preferred patterns.
After changing the clamp to appropriate, access to 100 fixed patterns (vertical, horizontal, half-round, round.).
Additionally, as an option, 6 other clamps: 21x5,1 mm, 27x5 mm, 10x4,5 mm, 5,6x23 mm, 2x20 mm, 20x40 mm.
For this machine we recommend SCHMETZ needles system 135x5 or 135x5 SERV7 with correct needle points, depending on the fabric.
|Type of sewing material||medium and heavy|
|LED lighting of working field||yes|
|Serial clamp size||20 x 4.5 mm|
|Max. bartack size||18 x 4 mm|
|Bartacking patterns (standard clamp)||15|
|Bartacking patterns (after changing clamp)||100|
|Max. sewing speed||3000 s.p.m.|
