ZOJE ZJ893A-4-02x250-02

4-thread, mechatronic double chainstitch overlock machine with needles positioning - machine head

Compare products

Description:

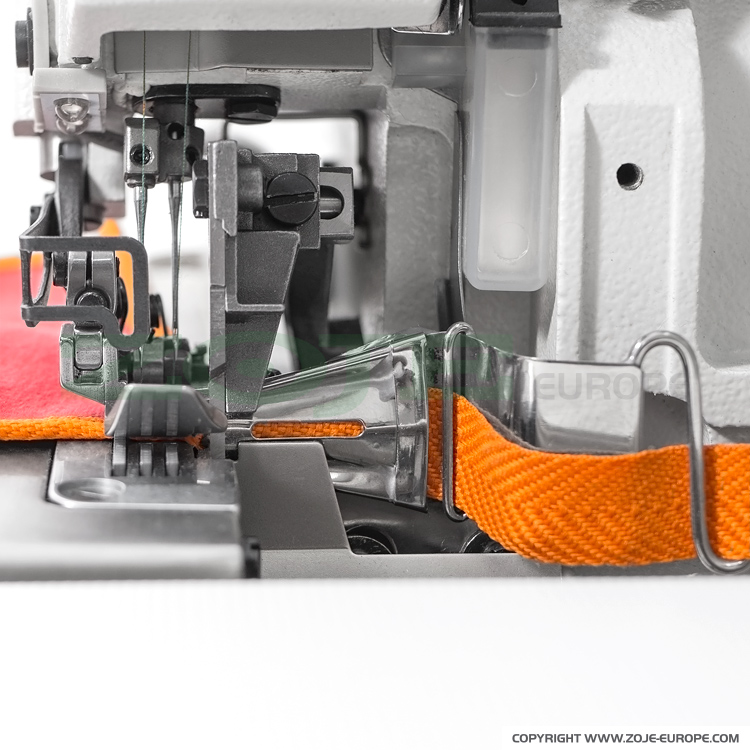

2-needle / 4-thread double chainstitch overlock machine for light and medium materials. Efficient, quiet and fast. Applicable for tape binding (binder included) and sewing pockets.

Now with energy-saving AC Servo motor, control box and power switch integrated into machine head (mechatronics "all-in-one" set). AC Servo motor saves up to 70% energy comparing to a conventional electronic motor or clutch motor. Ensures quiet work without adverse vibration.

Needles gauge 5 mm, seam width 5 mm, stitch length 3mm, max. sewing speed 6.000 s.p.m., differential bottom feed, central lubrication.

For this machine we recommend SCHMETZ needles system B-27 with correct needle points, depending on the fabric.

Technical specification:

Type of sewing material light, medium
Built-in motor (direct drive) yes
Number of threads 4
Automatic needle positioning yes
Automatic thread trimming no
Automatic foot lifter
Automatic bartacking
Overedging width 5 mm
Total seam width
Top feed no
Presser foot lift height 6 mm
Max. sewing speed 6000 s.p.m.
Needle system B-27
Kit head with built-in Servo motor and programming control panel
