Sewing machines

1-needle flat bed lockstitch machines with bottom feed

Automatic, mechatronic lockstitch machine with touch screen panel and closed lubrication circuit - the complete sewing machine

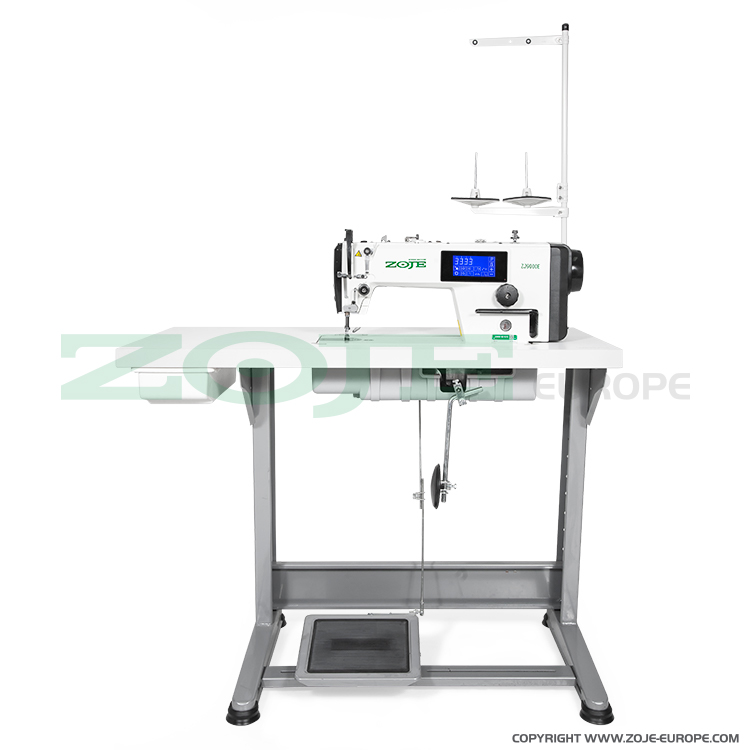

ZOJE ZJ9000E-D4S-02 SET

Automatic, mechatronic lockstitch machine with touch screen panel and closed lubrication circuit - the complete sewing machine

Compare products

Description:

New! ZOJE ZJ9000E-D4S-02 SET is a mechatronic an automatic 1-needle lockstitch machine with panel touch screen, for light and medium materials.

Now equipped with innovative closed lubrication system divided into two sections - first one lubricates hook and have special oil detector that makes sound signal when the oil runs low. Other section lubricate the moving parts, except for dry needle bar protected by PTFE.

Machine is serial equipped with automatic functions:
- needle positioning,
- thread trimmer - in this model you can get even 3 mm cut of lower thread (standard 5 mm),
- electromagnetic foot lifting - pedal and knee lifter (up to 9 mm, and with use of knee lifter to 13 mm),
- reverse feeding with programmed size of the initial and final bartack,
- possibility of programming sewing sections,
- controller of initial stitch,
- max. sewing speed 5 000 s.p.m.,
- bottom feed,
- max. stitch length 5 mm.

Built-in USB port - to be used for battery charging (smartphones and tablets).
Integrated 3 degrees adjustable brightness energy-saving LED lamp for lighting of working field.
Model with energy-saving AC Servo motor, control box, the programming control panel and power switch integrated into machine head (mechatronic "all-in-one" set). Thanks to integration of all elements the machine works quietly and without adverse vibrations.
AC Servo motor saves up to 70% energy comparing to a conventional electronic motor or clutch motor.
Modern cooling system of motor and control module.
The complete sewing machine with Kessler stand and table top.
For this machine we recommend SCHMETZ needles system 135x5 or 135x5 SERV7, with correct needle points, depending on the fabric.

Technical specification:

Type of sewing material light, medium
Type of feed bottom
Built-in motor (direct drive) yes
Automatic needle positioning yes
Automatic thread trimming yes
Automatic foot lifter yes
Automatic bartacking yes
Wiper no
Type of lubrication closed "dry" circuit
Stitch compensation button yes
Side trimmer no
LED lighting of working field yes
Max. stitch length 5 mm
Presser foot lift height 13 mm
Max. sewing speed 5000 s.p.m.
Needle system 135x5
Kit complete set
