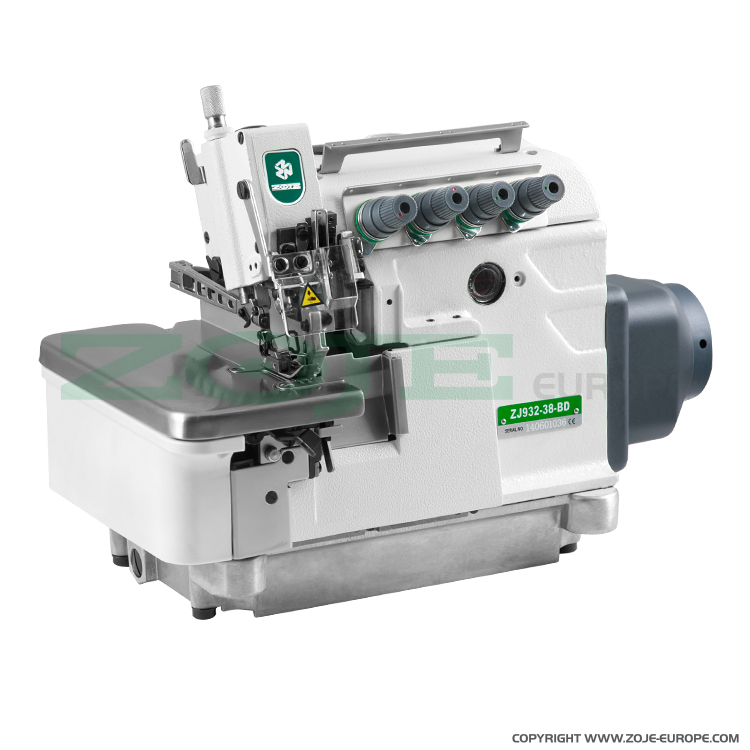

5-thread overlock (safety stitch) machine, light and medium materials, direct drive type needle bar, built-in AC Servo motor, needles positioning - machine head
900 series is flagship ZOJE overlock series. 2-needle / 5-thread overlock (safety stitch) machine (stitch type 516) for light and medium materials. Equipped with energy-saving AC Servo motor built-in into machine head and automatic needle positioning (top - bottom). AC Servo motor saves up to 70% energy comparing to a conventional electronic motor or clutch motor. Ensures quiet work without adverse vibration.
Needles gauge 3 mm, seam width 5 mm (8 mm with safety stitch), max. sewing speed 6.500 s.p.m., differential bottom feed, central lubrication.
For this machine we recommend SCHMETZ needles system B-27 with correct needle points, depending on the fabric.
|Type of sewing material||light, medium|
|Built-in motor (direct drive)||yes|
|Number of threads||5|
|Automatic needle positioning||yes|
|Automatic thread trimming||no|
|Automatic foot lifter||no|
|Overedging width||5 mm|
|Total seam width||8 mm|
|Presser foot lift height||5.5 mm|
|Max. sewing speed||6500 s.p.m.|
|Kit||head with built-in Servo motor|
