Overlock (safety stitch) machines 4-thread
-machine-with-top-feed--for-heavy-materials--with-built-in-AC-Servo-motor--needles-positioning---machine-head.jpg "ZOJE ZJ952T-13H-BD - 4-thread overlock (safety stitch) machine with top feed, for heavy materials, with built-in AC Servo motor, needles positioning - machine head - 1")

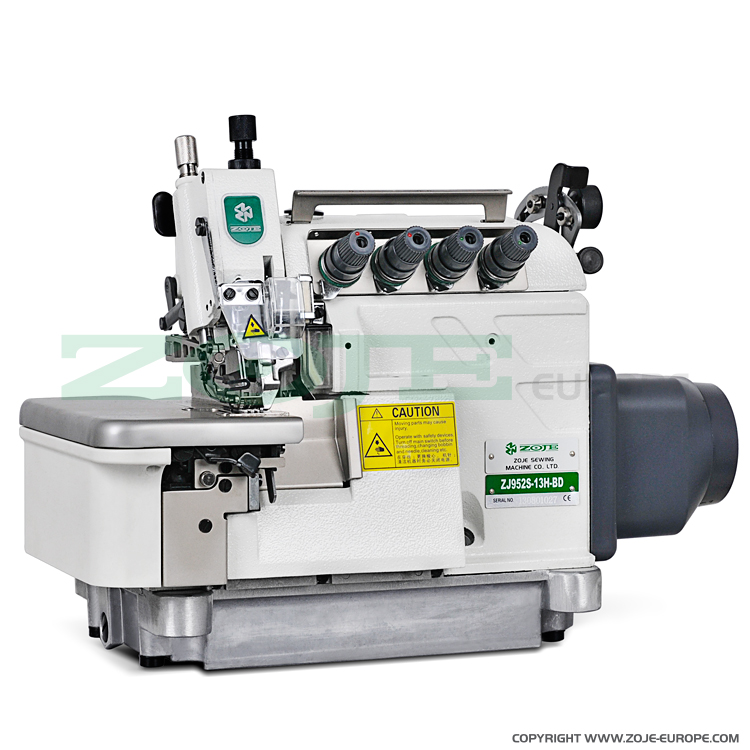

ZOJE ZJ952T-13H-BD
4-thread overlock (safety stitch) machine with top feed, for heavy materials, with built-in AC Servo motor, needles positioning - machine head
Description:
900 series is flagship ZOJE overlock series. 2-needle / 4-thread overlock (safety stitch) machine (stitch type 514) for heavy materials. Equipped with energy-saving AC Servo motor built-in into machine head and automatic needle positioning (top - bottom). AC Servo motor saves up to 70% energy comparing to a conventional electronic motor or clutch motor. Ensures quiet work without adverse vibration.
Needles gauge 2 mm, seam width 4 mm (6 mm with safety stitch), max. sewing speed 6.500 s.p.m., differential bottom feed and top feed - ensures accurate guiding of the upper layer of material, eliminates the problem of sewing over cross seams. Direct drive type needle bar and central lubrication. Stitch length (density) adjustable by special mechanism.
For this machine we recommend SCHMETZ needles system B-27 with correct needle points, depending on the fabric.
Technical specification:
| Type of sewing material | heavy |
| Built-in motor (direct drive) | yes |
| Number of threads | 4 |
| Automatic needle positioning | yes |
| Automatic thread trimming | no |
| Automatic foot lifter | no |
| Automatic bartacking | no |
| Overedging width | 4 mm |
| Total seam width | 6 mm |
| Top feed | yes |
| Presser foot lift height | 6 mm |
| Max. sewing speed | 6500 s.p.m. |
| Needle system | B-27 |
| Kit | head with built-in Servo motor |
