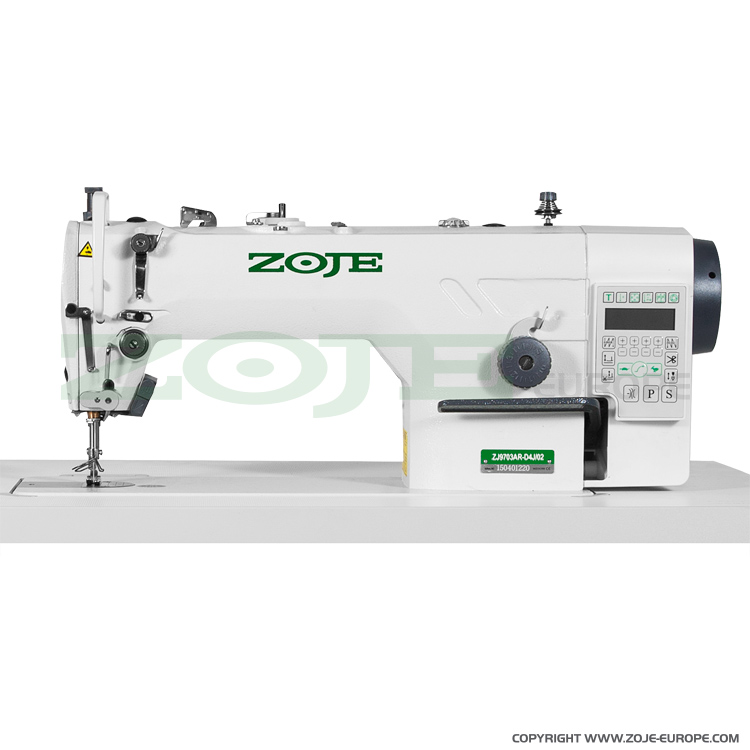

Automatic lockstitch machine for light and medium materials, with built-in AC Servo motor and control box - machine head
Automatic 1-needle lockstitch machine for light and medium materials. Serial equipped with automatic functions: thread trimmer, reverse feeding with programmed size of the initial and final bartack, foot lifter, needle positioning and controller of initial stitch. Integrated 3 degrees adjustable brightness energy-saving LED lamp for lighting of working field.
Model with energy-saving AC Servo motor, control box, programming control panel and power switch integrated into machine head (mechatronic "all-in-one" set). Thanks to integration of all elements the machine works quietly and without adverse vibrations. AC Servo motor saves up to 70% energy comparing to a conventional electronic motor or clutch motor.
Bottom feed, max sewing speed 5.000 s.p.m., max. stitch length 5 mm, foot lifting up to 13 mm, central lubrication.
For this machine we recommend SCHMETZ needles system 135x5 or 135x5 SERV7, with correct needle points, depending on the fabric.
|Type of sewing material||light|
|Type of feed||bottom|
|Built-in motor (direct drive)||yes|
|Automatic needle positioning||yes|
|Automatic thread trimming||yes|
|Automatic foot lifter||yes|
|Type of lubrication||central circuit|
|Stitch compensation button||yes|
|LED lighting of working field||yes|
|Max. stitch length||5 mm|
|Presser foot lift height||13 mm|
|Max. sewing speed||5000 s.p.m.|
