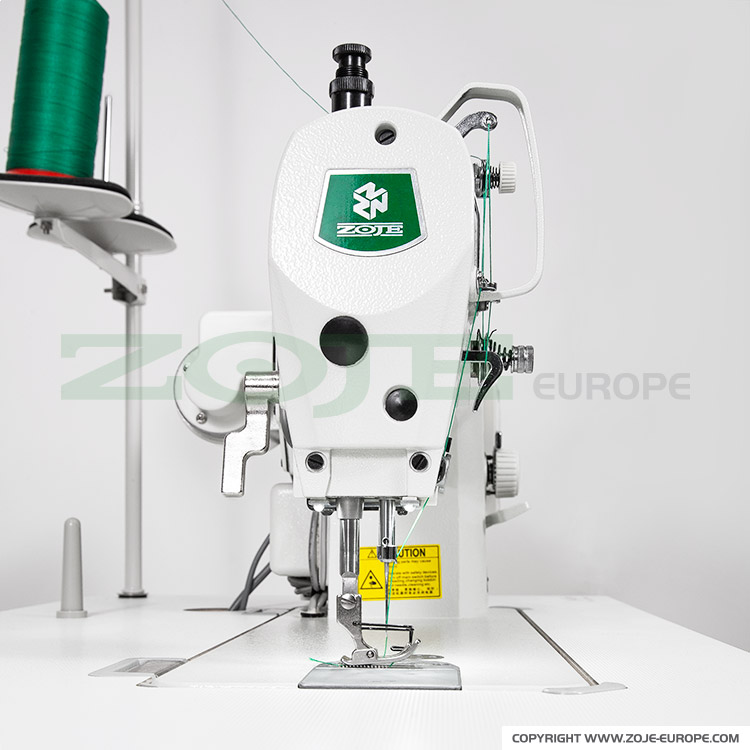

Automatic 1-needle lockstitch machine with a maximum stitch length - up to 11 mm, for medium and heavy fabrics - machine head

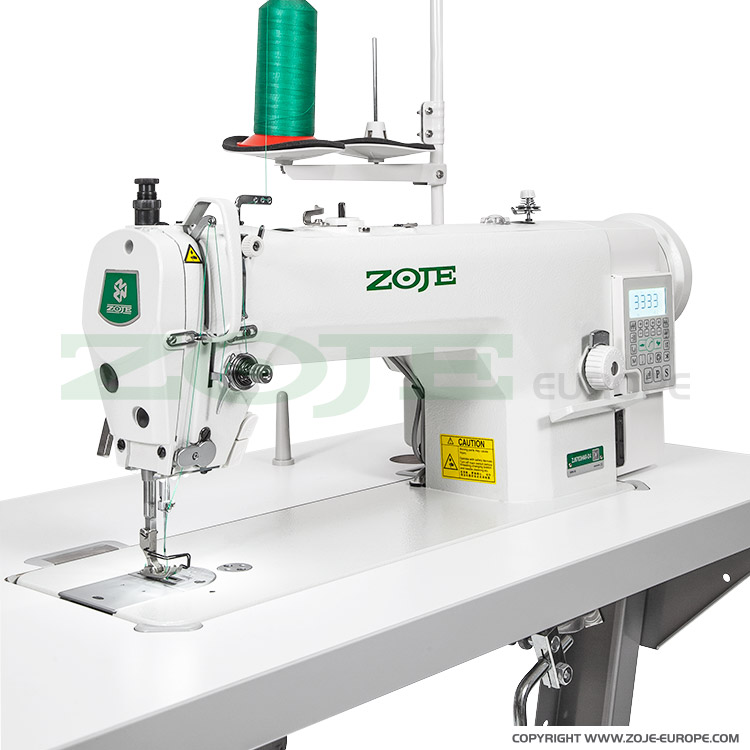

1-needle lockstitch machine Zoje ZJ9703HAR-D4 for sewing medium and heavy fabrics, with a large maximum stitch length - up to 11 mm, with automatic needle positioning, thread trimming, foot lifting and bartacking.

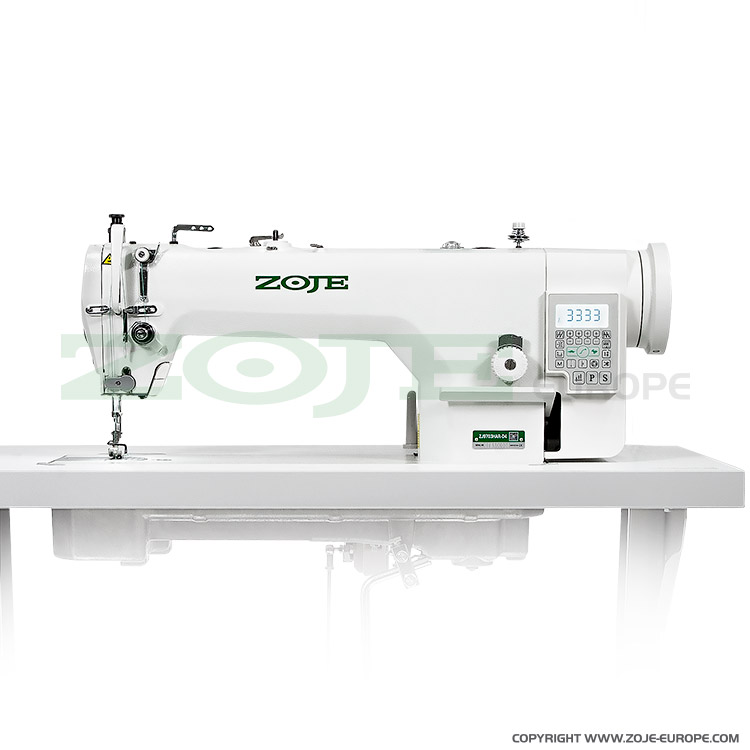

Industrial one needle lockstitch machineZoje ZJ9703HAR-D4 is a sewing machine with an enlarged sewing field - distance between the needle bar and the arm the machine is 46 cm . The machine allows sewing with a very long stitch - even up to 11 mm , which allows for quick stitching of individual elements. Zoje lockstitch ZJ9703HAR-D4 is equipped with a large hook , and the presser foot can be raised to a height of 14 mm. The maximum sewing speed for this model is 2500 stitches per minute . Sewing machine as standard equipped with automatic functions: thread cutting, needle positioning, foot lifting and bartacking.
Modern industrial lockstitch machineZoje ZJ9703HAR-D4 is equipped with an energy-saving AC SERVO motor with a power of 750 W. Thanks to the integration of the motor and control box in the head, the machine works quietly and without unwanted vibrations. A modern control panel provides quick access to sewing parameters. Industrial lockstitch with an open lubrication system.
For the Zoje ZJ9703HAR-D4 lockstitch machine, we recommend SCHMETZ needles system 135x5 or 135x5 SERV7 .
|Type of sewing material||medium, heavy|
|Type of feed||bottom|
|Built-in motor (direct drive)||yes|
|Automatic needle positioning||yes|
|Automatic thread trimming||yes|
|Automatic foot lifter||yes|
|Type of lubrication||central circuit|
|Stitch compensation button||–|
|LED lighting of working field||yes|
|Max. stitch length||11 mm|
|Presser foot lift height||–|
|Max. sewing speed||2500 s.p.m.|
