Overlock (safety stitch) machines 4-thread

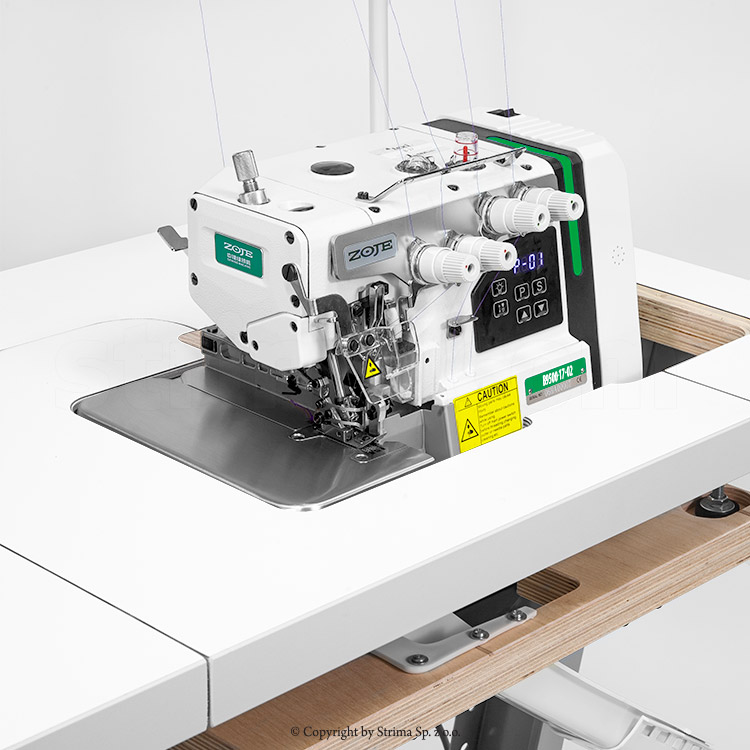

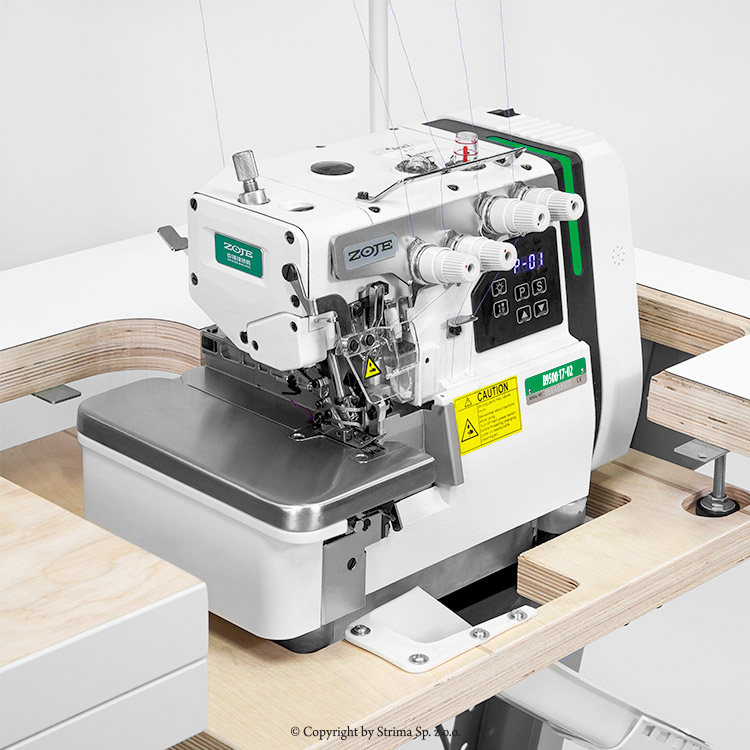

ZOJE B9500-70-02
2-needle, 5-thread mechatronic overlock for light and medium materials - machine head
Description:
Zoje B9500-70-02 is professional overlock sewing with a wide five-thread stitch - type 516. Sewing machine with automatic needle positioning and bottom differential feed.
Industrial Zoje overlock
Model B9500-70-02 is characterized by the speed - up to 7000 stitches per minute and the stitch width - overedging width is 5 mm and the gauge of the needles is 5 mm. The total stitch width is 10mm. The foot can be raised to a height of 6 mm. This overlock model is equipped with central lubrication.Modern five-thread overlock
Sewing machine Zoje B9500-70-02 is a model with an integrated structure. In order for the machine to work quietly and steadily, the motor, control box and drive of the needle bar are built into the head. The use of an effective AC SERVO motor allows for high energy savings. Overlock also has built-in practical lighting of the work area.For this model we recommend needles SCHMETZ system B-27 with properly selected points.
Technical specification:
| Type of sewing material | light, medium |
| Number of threads | 5 |
| Type of feed | – |
| Automatic needle positioning | yes |
| Top feed | no |
| Automatic thread trimming | – |
| Automatic foot lifter | no |
| Overedging width | 5 mm |
| Total seam width | 10 mm |
| LED lighting of working field | yes |
| Max. stitch length | – |
| Presser foot lift height | 6 mm |
| Max. sewing speed | 7000 s.p.m. |
| Built-in AC Servo motor | yes |
| Needle system | B-27 |
| Kit | head |
