ZOJE C5000-356-02 SET+TZ 90000476

3-needle, 5-thread Interlock for light and medium fabrics with pneumatic belt cutting device - complete sewing machine

Compare products

Description:

ZOJE C5000-356-02 SET+TZ 90000476 is a 3-needle, 5-thread interlock with a flat-bed, differential bottom feed and automatic needles positioning. Sewing machine with a pneumatic belt cutting device.

Industrial interlock from the new ZOJE series - V Generation.



Industrial, three-needle interlock

Zoje C5000-356-02 SET+TZ 90000476 for sewing light and medium fabrics is a mechatronic sewing machine with a pneumatic belt cutting device. This model is best for binding (binders sold separately) . For interlock Zoje C5000-356-02 SET+TZ 90000476 with pneumatic cutting you can install various UMA binders.
Basic parameters of interlock Zoje C5000 are: sewing speed - up to 5000 stitches per minute, needle gauge is 5.6 mm, and the maximum stitch length is 4.5 mm. The machine allows you to sew a classic ladder stitch with the decorative upper interlacing on or off. In Zoje C5000, the presser foot can be raised up to 5 mm. The machine is equipped with a central lubrication system.

Energy-saving five-thread interlock

Zoje C5000-356-02 SET is a modern sewing machine designed to work quietly and to save energy. The control box built into the machine's head and the efficient AC SERVO motor guarantee up to 70% less energy consumption and almost noiseless operation of the machine. The interlock is equipped with precise LED lighting for the working area.

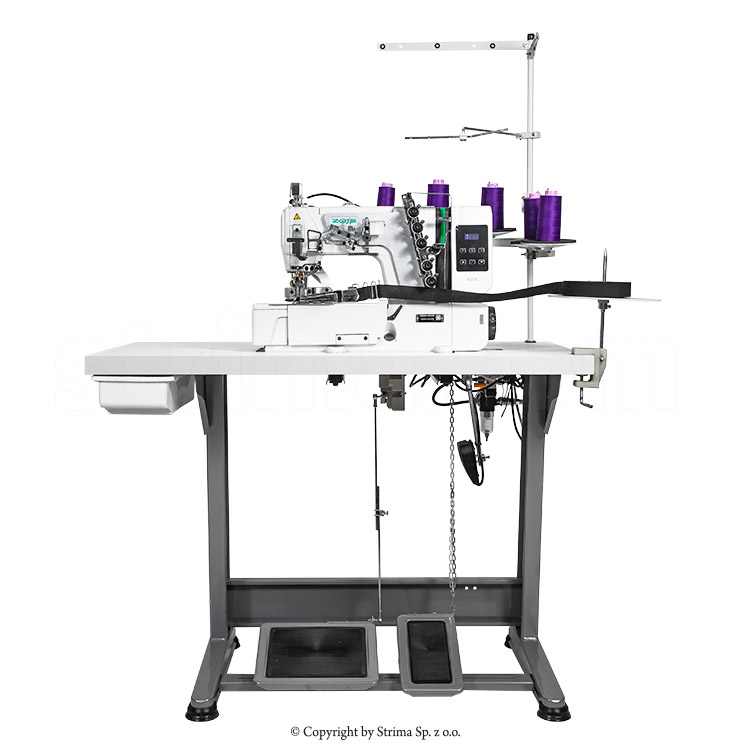

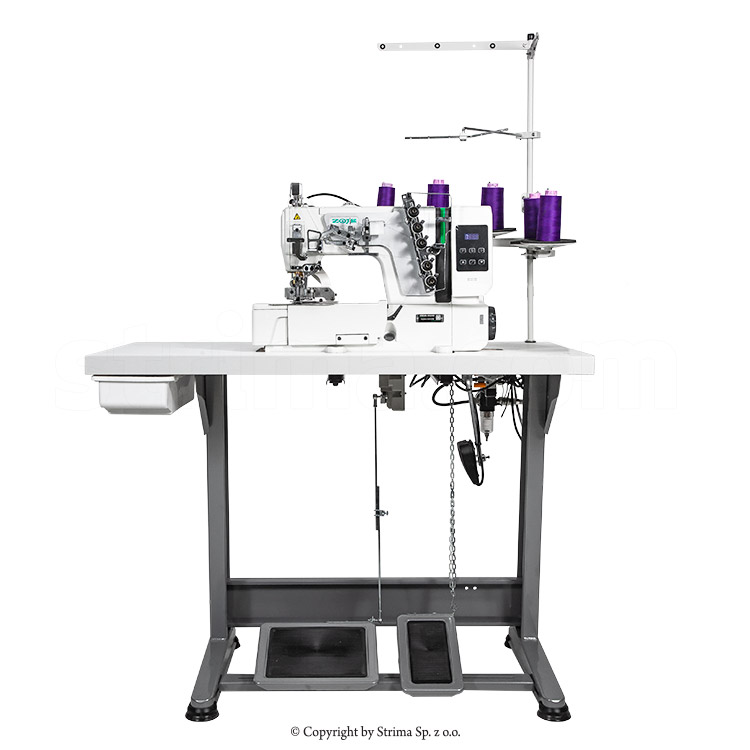

ZOJE C5000-356-02 SET is a complete sewing machine with Kessler stand and table top.

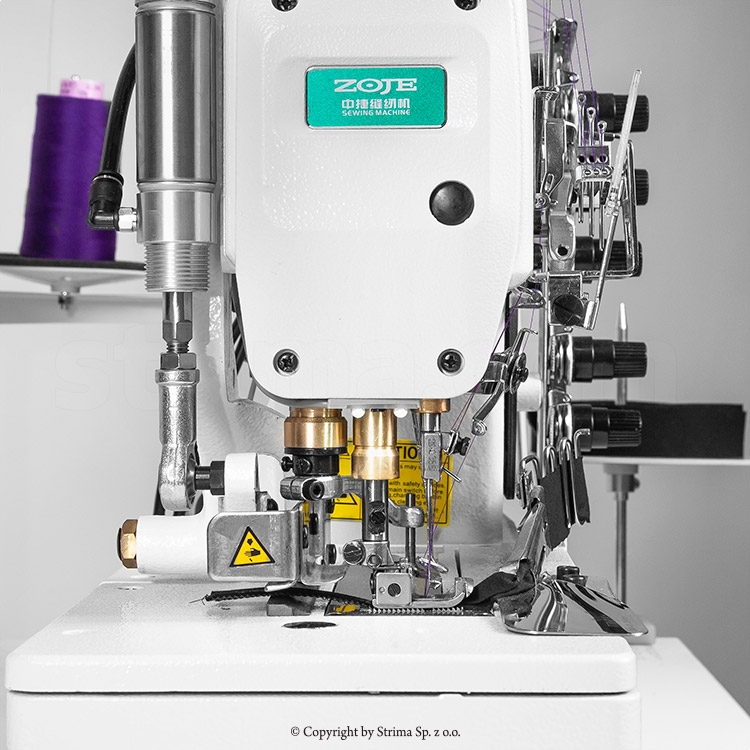

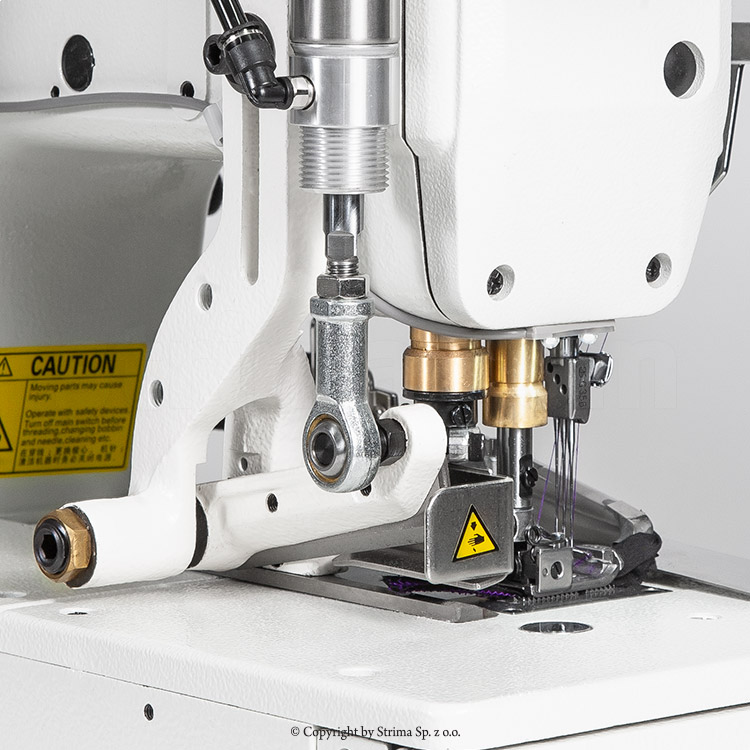

The machine is equipped as standard with pneumatic cutting device - TZ 90000476. Compressed air is required to run trimming. Binder and Tape Rack are sold separately.

For Zoje Interlocks we recommend SCHMETZ needles system UY 128 GAS or UY 128 GAS SERV7 with appropriate points.

Technical specification:

Type of sewing material
Built-in motor (direct drive)
Bed type
Coverstitch machine for applications
Needle gauge of coverstitch machine
Automatic needle positioning
Automatic thread trimming
Automatic foot lifter
Max. sewing speed
Needle system
Kit
