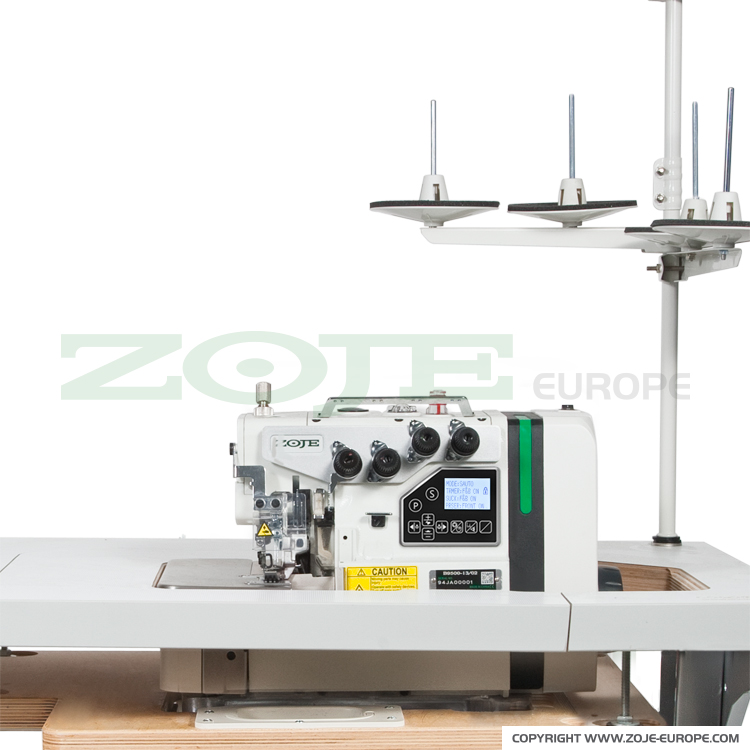

ZOJE B9500-38-PD3-02

2-needle, 5-thread mechatronic overlock for light and medium materials with pneumatic cutting - machines head

Compare products

Description:

ZOJE B9500-38-PD3-02 is an industrial overlock with a differential bottom feed and automatic needle positioning. Machine for sewing light and medium fabrics with pneumatic foot lift, thread cutting and scrap suction system.

Industrial five-thread overlock

ZOJE B9500-38-PD3-02 is a professional sewing machinesewing universal five-thread overlock - overedging width 5 mm, total stitch width 8 mm, needle gauge 3 mm. The overlock works at a speed of 7000 s.p.m. and the foot can be raised to a maximum of 6 mm. Machine with classic - central lubrication system.

Industrial overlock with pneumatic tooling

Zoje overlockintegrated thread trimming and scrap suction system. This solution definitely makes it easier to keep both the sewing machine and the entire workplace clean. Additionally, lifting the presser foot is pneumatically assisted. A compressed air supply is required for the proper functioning of pneumatic tooling.

Modern two-needle overlock

ZOJE B9500-38-PD3-02 is a quiet and energy-saving 5-thread overlock with an AC SERVO motor integrated in the machine head. Thanks to this, the machine does not vibrate and uses up to 70% less energy compared to conventional motors. This model has a built-in precise LED lamp to illuminate the working area.

For overlock machines, we recommend SCHMETZ system B-27 needles with tips selected for the sewn fabrics.

Technical specification:

Type of sewing material light, medium
Built-in motor (direct drive) yes
Number of threads 5
Automatic needle positioning no
Automatic thread trimming yes
Automatic foot lifter yes
Automatic bartacking
Overedging width 5 mm
Total seam width 8 mm
Presser foot lift height 6 mm
Max. sewing speed
Needle system B-27
Kit head
