Overlock (safety stitch) machines 5-thread
ZOJE B9500-38-PD3-02 SET

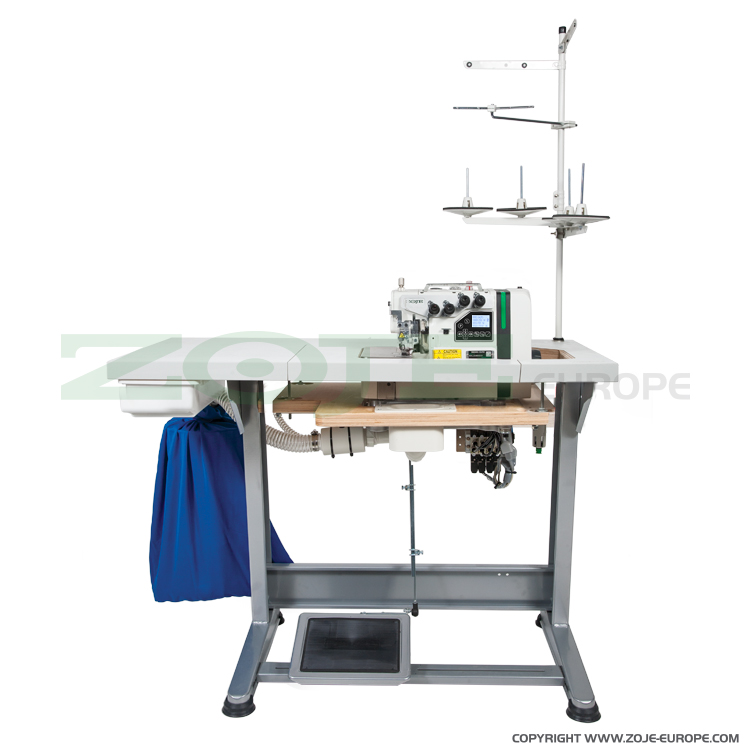

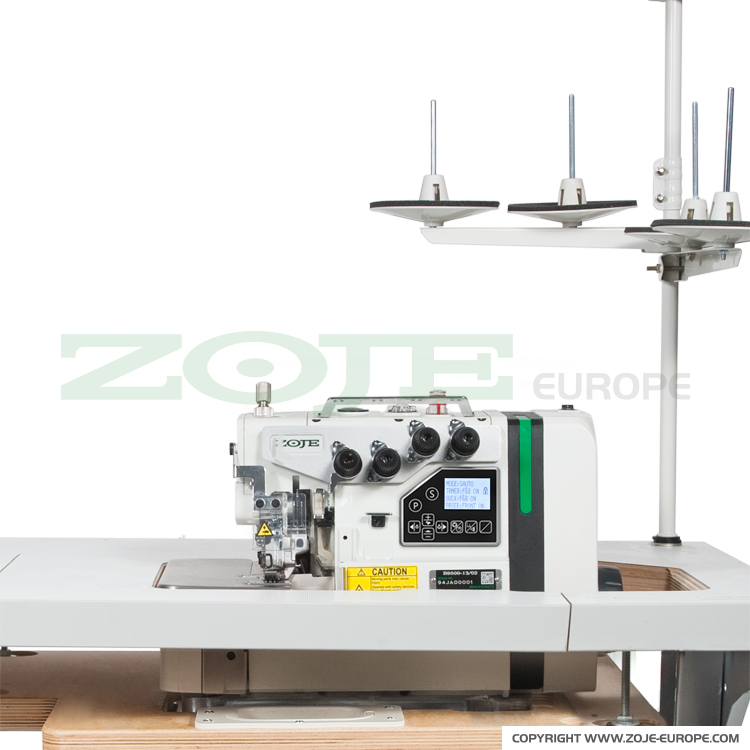

2-needle, 5-thread mechatronic overlock for light and medium materials with pneumatic cutting - complete sewing machine
Description:
ZOJE B9500-38-PD3-02 is an industrial overlock with a differential bottom feed and automatic needle positioning. Machine for sewing light and medium fabrics with pneumatic foot lift, thread cutting and scrap suction system.
Industrial five-thread overlock
ZOJE B9500-38-PD3-02 is a professional sewing machinesewing universal five-thread overlock - overedging width 5 mm, total stitch width 8 mm, needle gauge 3 mm. The overlock works at a speed of 7000 s.p.m. and the foot can be raised to a maximum of 6 mm. Machine with classic - central lubrication system.Industrial overlock with pneumatic tooling
Zoje overlock B9500-13-02 SET has an integrated thread trimming and scrap suction system. This solution definitely makes it easier to keep both the sewing machine and the entire workplace clean. Additionally, lifting the presser foot is pneumatically assisted. A compressed air supply is required for the proper functioning of pneumatic tooling.Modern two-needle overlock
ZOJE B9500-38-PD3-02 is a quiet and energy-saving 5-thread overlock with an AC SERVO motor integrated in the machine head. Thanks to this, the machine does not vibrate and uses up to 70% less energy compared to conventional motors. This model has a built-in precise LED lamp to illuminate the working area.A complete sewing machine, on the stand and PREMIUM tabletop of the renowned Kessler brand. The highest quality table top made of 30-layer birch plywood guarantees long life and resistance to working conditions. Covered with structural laminate with increased resistance to impact and abrasion.
For overlock machines, we recommend SCHMETZ system B-27 needles with tips selected for the sewn fabrics.
Review photo of the 4-threaded version.
Technical specification:
| Type of sewing material | light, medium |
| Number of threads | 5 |
| Type of feed | – |
| Automatic needle positioning | yes |
| Top feed | no |
| Automatic thread trimming | – |
| Automatic foot lifter | – |
| Overedging width | 5 mm |
| Total seam width | 8 mm |
| LED lighting of working field | yes |
| Max. stitch length | – |
| Presser foot lift height | 6 mm |
| Max. sewing speed | 7000 s.p.m. |
| Built-in AC Servo motor | yes |
| Needle system | B-27 |
| Kit | – |
