1-needle flat bed lockstitch machines with bottom feed

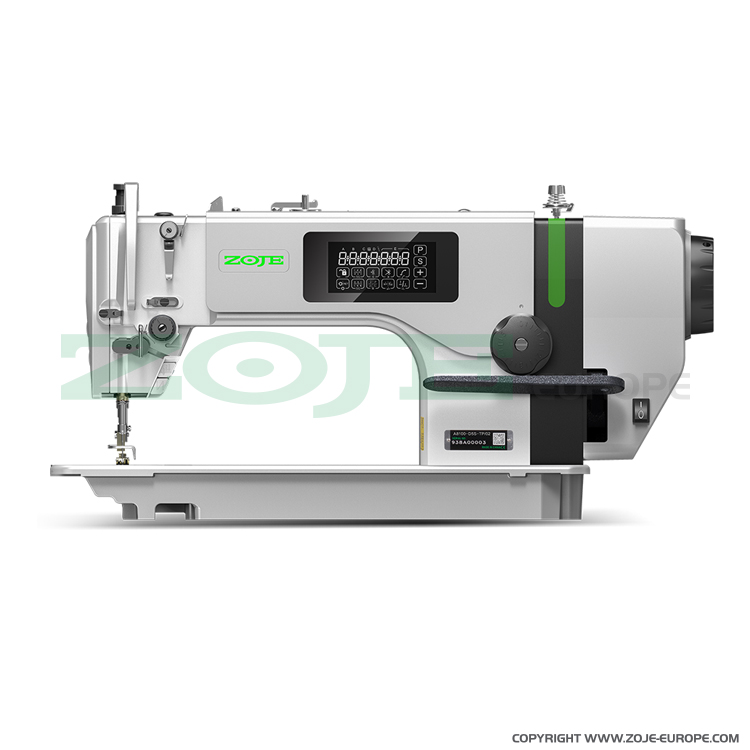

ZOJE A8000-D4-TP-02
Automatic lockstitch machine for light and medium materials - machine head
Description:
Automatic 1-needle lockstitch machine for light and medium materials. Serial equipped with automatic functions: thread trimmer, reverse feeding with programmed size of the initial and final bartack, foot lifter, needle positioning and controller of initial stitch. Integrated 3 degrees adjustable brightness energy-saving LED lamp for lighting of working field.
Model with touch screen panel, energy-saving AC Servo motor, control box, programming control panel and power switch integrated into machine head (mechatronic "all-in-one" set). Thanks to integration of all elements the machine works quietly and without adverse vibrations. AC Servo motor saves up to 70% energy comparing to a conventional electronic motor or clutch motor.
Bottom feed, max sewing speed 5.000 s.p.m., max. stitch length 5 mm, foot lifting up to 13 mm, central lubrication.
For this machine we recommend SCHMETZ needles system 135x5 or 135x5 SERV7, with correct needle points, depending on the fabric.
Technical specification:
| Type of sewing material | light, medium |
| Type of feed | bottom |
| Automatic needle positioning | yes |
| Automatic thread trimming | yes |
| Automatic foot lifter | yes |
| Automatic bartacking | yes |
| Wiper | no |
| Stitch compensation button | yes |
| Type of lubrication | central circuit |
| Side trimmer | no |
| LED lighting of working field | yes |
| Max. stitch length | 5.0 mm |
| Presser foot lift height | 13 mm |
| Max. sewing speed | 5000 s.p.m. |
| Built-in AC Servo motor | yes |
| Needle system | 135X5 |
| Kit | head with built-in Servo motor and programming control panel |
