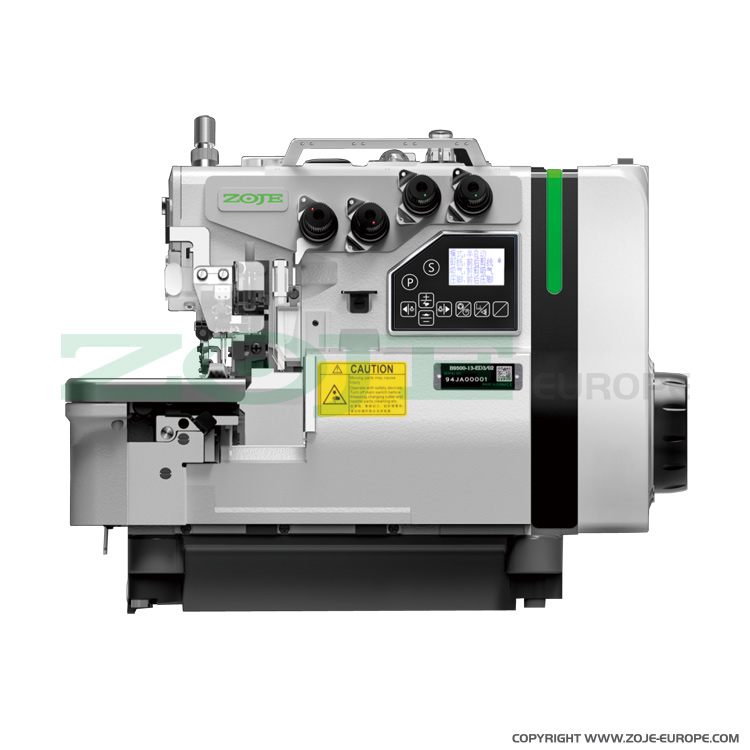

4-thread overlock (safety stitch) machine, light and medium materials, direct drive type needle bar, built-in AC Servo motor, needles positioning - head only
2-needle / 4-thread overlock (safety stitch) machine (stitch type 514) for light and medium materials. Equipped with thread trimmer with integrated suction for fabric leftovers, energy-saving AC Servo motor built-in into machine head and automatic needle positioning (top - bottom). AC Servo motor saves up to 70% energy comparing to a conventional electronic motor or clutch motor. Ensures quiet work without adverse vibration.
Needles gauge 2 mm, seam width 4 mm (6 mm with safety stitch), max. sewing speed 7.000 s.p.m., differential bottom feed, direct drive type needle bar and improved central lubrication.
For this machine we recommend SCHMETZ needles system B-27 with correct needle points, depending on the fabric.
|Type of sewing material||–|
|Built-in motor (direct drive)||–|
|Number of threads||–|
|Automatic needle positioning||–|
|Automatic thread trimming||–|
|Automatic foot lifter||–|
|Total seam width||–|
|Presser foot lift height||–|
|Max. sewing speed||–|
