Overlock (safety stitch) machines 4-thread
ZOJE B9500-13-ED3-02 SET
2-needle, 4-thread automatic overlock machine for light and medium materials - complete sewing machine
Description:
ZOJE B9500-13-ED3-02 SET is 2-needle, 4-thread overlock for sewing light and medium fabrics. The machine is equipped with automatic trimming, foot lifting and integrated, vacuum suction of fabric leftovers.
Industrial overlock from the new ZOJE - V Generation .
Zoje industrial overlock
B9500-13-ED3-02 SET is a professional sewing machine with integrated system of vacuum suction of fabric remnants into a special tank and electromagnetic thread trimmer. This modern solution allows for more effective and easier maintenance of the machine, and thus the entire sewing room clean. Overlock B9500-13-ED3-02 SET sews with maximum speed 7 000 stitches per minute, stitch width is 6mm . In this model, the foot rises to a height of 6 mm. Sewing machine equipped with differential bottom feed and automatic functions: needle positioning, thread cutting and foot lifting . Zoje B9500-13-ED3-02 is an industrial overlock with an improved central lubrication system.A modern two needle overlock
The B9500-13-ED3-02 SET model is equipped with an energy-saving AC SERVO motor. The control box, motor and direct drive of the needle bar are built into the head of the machine, which effectively reduces vibrations. Easy access to sewing parameters is provided by a clear control panel . The operation of the machine is additionally facilitated by voice messages . The field of work is illuminated by an energy-saving and precise LED lamp.ZOJE B9500-13-ED3-02 SET does not require compressed air for operation.

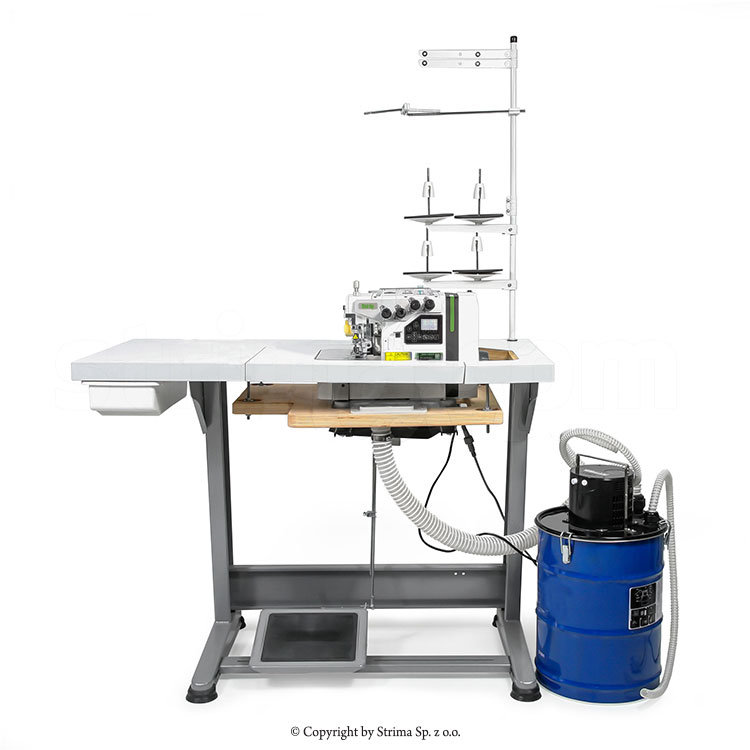

A complete sewing machine, on the stand and PREMIUM tabletop of the renowned Kessler brand.
For overlock B9500-13-ED3-02 SET we recommend needles SCHMETZ system B-27 with the appropriate points.
Technical specification:
Type of sewing material | light, medium |
Number of threads | 4 |
Type of feed | – |
Automatic needle positioning | – |
Top feed | no |
Automatic thread trimming | – |
Automatic foot lifter | – |
Overedging width | – |
Total seam width | 6 mm |
LED lighting of working field | yes |
Max. stitch length | – |
Presser foot lift height | 6 mm |
Max. sewing speed | 7000 s.p.m. |
Built-in AC Servo motor | – |
Needle system | B-27 |
Kit | complete set |
