ZOJE B9500-13-ED3-02 SET

4-thread overlock (safety stitch) machine, light and medium materials, direct drive type needle bar, built-in AC Servo motor, needles positioning - SET

Compare products

Description:

2-needle / 4-thread overlock (safety stitch) machine (stitch type 514) for light and medium materials. Equipped with thread trimmer with integrated suction for fabric leftovers, energy-saving AC Servo motor built-in into machine head and automatic needle positioning (top - bottom). AC Servo motor saves up to 70% energy comparing to a conventional electronic motor or clutch motor. Ensures quiet work without adverse vibration.

Needles gauge 2 mm, seam width 4 mm (6 mm with safety stitch), max. sewing speed 7.000 s.p.m., differential bottom feed, direct drive type needle bar and improved central lubrication.

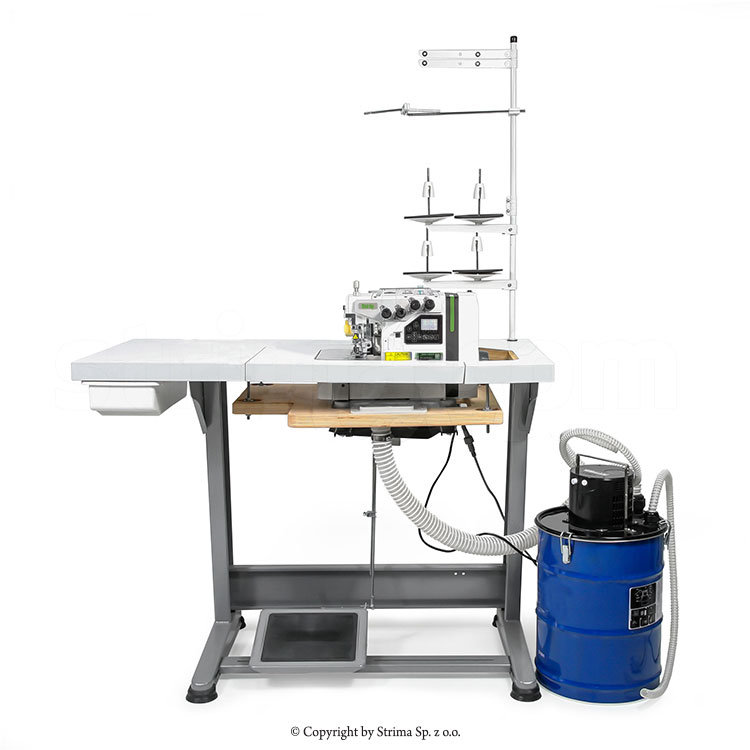

Complete sewing machine with Kessler stand and table top.

For this machine we recommend SCHMETZ needles system B-27 with correct needle points, depending on the fabric.

Technical specification:

Type of sewing material light, medium
Type of feed bottom
Built-in motor (direct drive) yes
Automatic needle positioning yes
Automatic thread trimming yes
Automatic foot lifter yes
Automatic bartacking
Wiper
Type of lubrication central circuit
Stitch compensation button
Side trimmer
LED lighting of working field yes
Max. stitch length
Presser foot lift height 6 mm
Max. sewing speed
Needle system B-27
Kit complete set
