Overlock (safety stitch) machines 3-thread

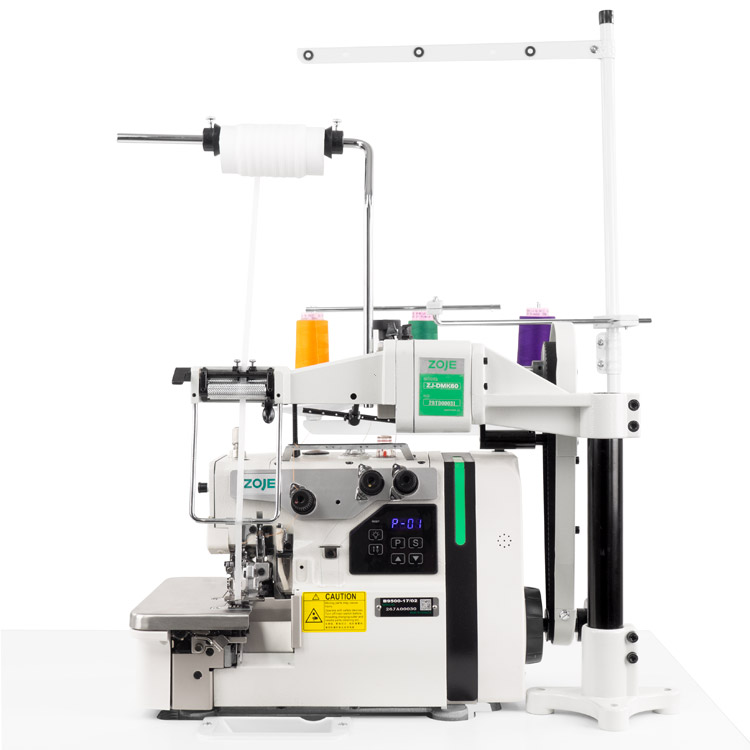

ZOJE B9500-17-02-MDK/60 SET
1-needle, 3-thread mechatronic overlock for light and medium materials with mechanic tape metering device - complete sewing machine
Description:
ZOJE B9500-17-02-MDK/60 SET is a mechatronic 1-needle, 3-thread overlock for sewing light and medium fabrics with mechanic tape metering device. Sewing machine with automatic needle positioning and differential bottom feed.
Zoje industrial overlock
ZOJE B9500-17-02-MDK/60 SET is a reliable three-thread overlock . The seam width for this model is 4mm and the maximum speed of the machine is 7000 stitches per minute . The foot lifts up to a maximum of 6 mm. Zoje ZOJE B9500-17-02-MDK/60 SET is an industrial sewing machine with differential bottom feed and central lubrication.Modern three-thread overlock
ZOJE B9500-17-02-MDK/60 SET is a sewing machine equipped with a modern, energy-saving AC SERVO motor. The motor, control box and on/off switch are built into the machine head - thanks to this the overlock works quietly and does not generate unwanted vibrations . The machine is equipped as standard with a LED lamp illuminating the working field.Efficient tape dispenser

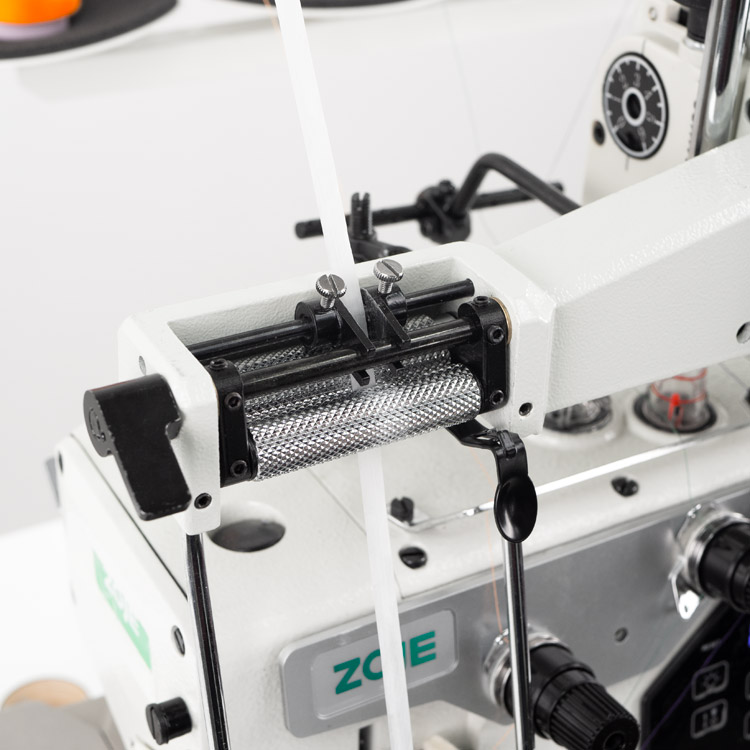

Mechanical tape dispenser with adjustable feed speed ZJ-MDK/60 for B9500 overlock series. It will prove useful in many applications, making it easier to work with tapes of various kinds.
ZJ-MDK/60 tape dispenser comes with a foot that allows for precise guidance of tape up to 40 mm (a wider foot can be used for tapes up to 52 mm). It has an adjustable spindle for holding large tape spools and rollers that adjust to the thickness of the tape.
A complete sewing machine, on the stand and PREMIUM tabletop of the renowned Kessler brand. The highest quality table top made of 30-layer birch plywood guarantees long life and resistance to working conditions. Covered with structural laminate with increased resistance to impact and abrasion.
For this overlock we recommend SCHMETZ system B-27 needles, with points selected for the sewn fabric.

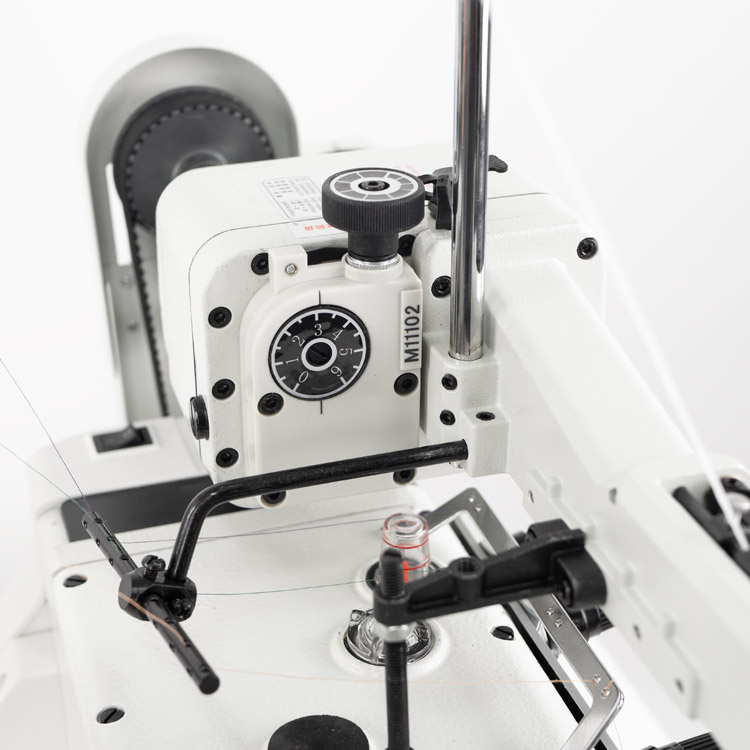

(Illustrative photos made on a 3-thread overlock machine)
Technical specification:
| Type of sewing material | – |
| Number of threads | – |
| Type of feed | – |
| Automatic needle positioning | – |
| Top feed | – |
| Automatic thread trimming | – |
| Automatic foot lifter | – |
| Overedging width | – |
| Total seam width | – |
| LED lighting of working field | – |
| Max. stitch length | – |
| Presser foot lift height | – |
| Max. sewing speed | – |
| Built-in AC Servo motor | – |
| Needle system | – |
| Kit | – |
