Sewing machines

Description:

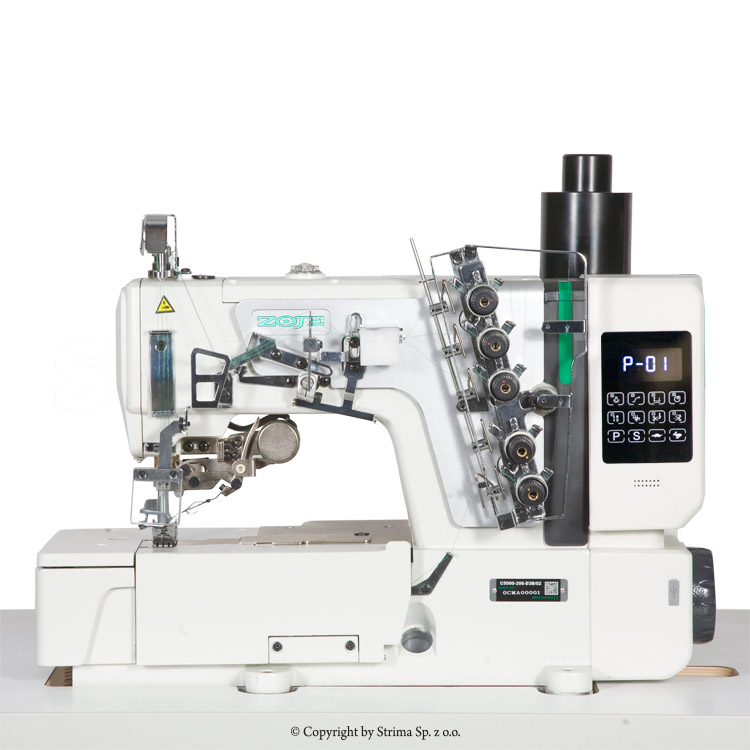

ZOJE C5000-356-D3C-02 SET is 3-needle, 5-thread interlock with a flat bed, differential bottom feed and automatic needle positioning. Machine also known as crosscut or render.

Industrial 3-needle interlock

C5000-356-D3C-02 SET for sewing light and medium materials is a mechatronic sewing machine with maximum speed sewing - up to 5000 stitches per minute. The gauge of the needles in this model is 5.6 mm and the maximum stitch length is 4.5 mm. In Zoje C5000 the presser foot can be raised 5 mm. The machine is equipped with a central lubrication system

The machine has an electromagnetic thread trimming system that operates in two ways:

• Trimming the thread under the lower plate and needle threads (the holder is installed on the right side in the interlock folder location). Used when sewing only with a chain stitch.
• Trimming the thread under the lower plate and the upper cover cutter (installed on the left side), used when sewing with a ladder stitch (with a top cover stitch).
The system allows for easy removal of material from under the foot after cutting the thread. When starting to sew again, the new stitch will be properly positioned on the material from the first needle insertion.

ZOJE C5000-356-D3C-02 SET is 3-needle, 5-thread interlock with a flat bed, differential bottom feed and automatic needle positioning. Machine also known as crosscut or render.

Industrial, three needle interlock

C5000-356-D3C-02 SET for sewing light and medium materials is a mechatronic sewing machine with maximum speed sewing - up to 5000 stitches per minute. The gauge of the needles in this model is 5.6 mm and the maximum stitch length is 4.5 mm. In Zoje C5000 the presser foot can be raised 5 mm. The machine is equipped with a central lubrication system.

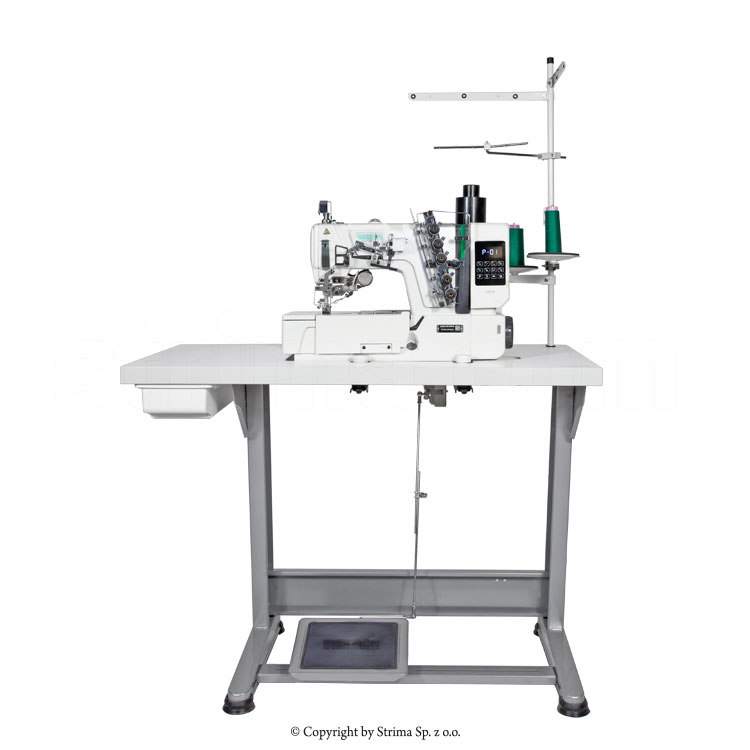

A complete sewing machine, on the stand and PREMIUM tabletop of the renowned Kessler brand. The highest quality table top made of 30-layer birch plywood guarantees long life and resistance to working conditions. Covered with structural laminate with increased resistance to impact and abrasion.

For Zoje interlocks, we recommend SCHMETZ needles system UY 128 GAS or UY 128 GAS SERV7 with appropriate tips.

Technical specification:

Coverstitch machine for applications	universal
Type of sewing material	light, medium
Type of feed	–
Automatic needle positioning	yes
Automatic thread trimming	yes
Automatic foot lifter	yes
Bed type	flat
Needle gauge of coverstitch machine	5,6 mm
LED lighting of working field	yes
Max. stitch length	4.5 mm
Presser foot lift height	5 mm
Max. sewing speed	5000 s.p.m.
Built-in AC Servo motor	yes
Needle system	UY 128 GAS
Kit	–
