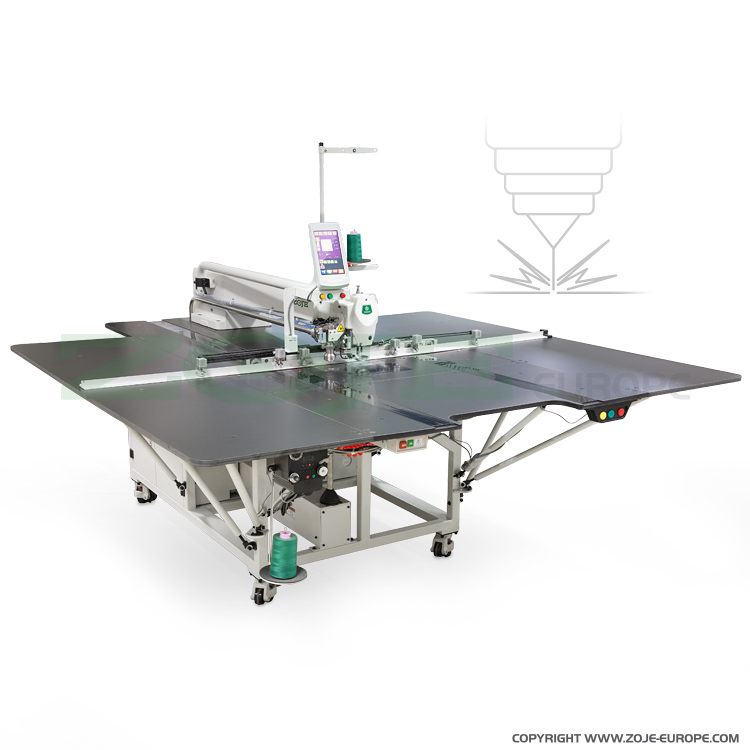

ZOJE ZJ-AM5-AH-LASER K-800 SET

Pattern sewing machine for very big elements, with laser for cutting in every direction

Compare products

Description:

Programmable pattern sewing machine for very large elements.

From now on production process will be even easier - don't waste your time, program your sewing on one element and you will see savings in no time.

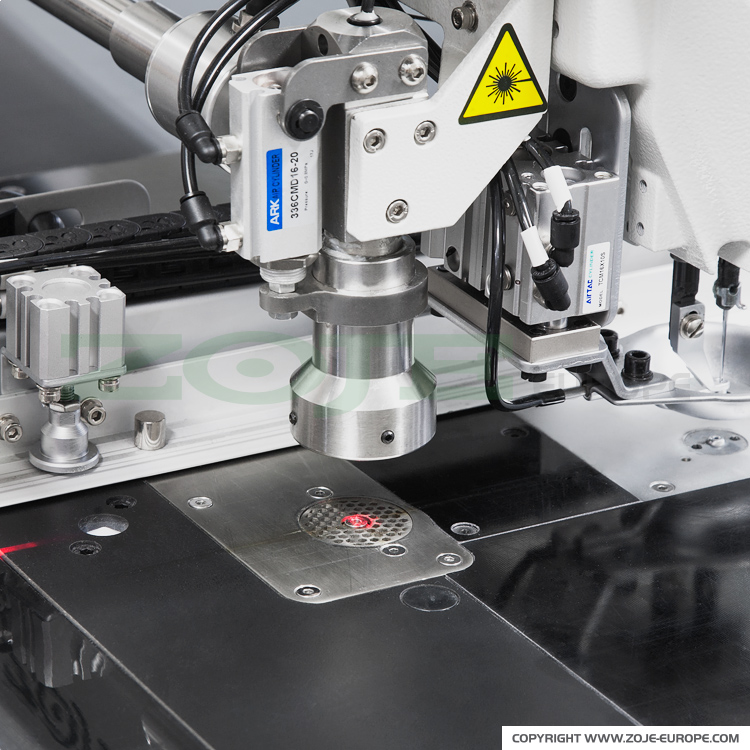

Equipped with additional laser that can cut in every direction - f.e. making round or wavy cut on the material after sewing.

Best in production of clothing from every fabric - from sewing zippers, pockets of trousers to even make embroider on ready products. Used in the production of quilted jackets, auto-motive elements and many more. Template can be adjusted to any element, depends on sewing pattern.

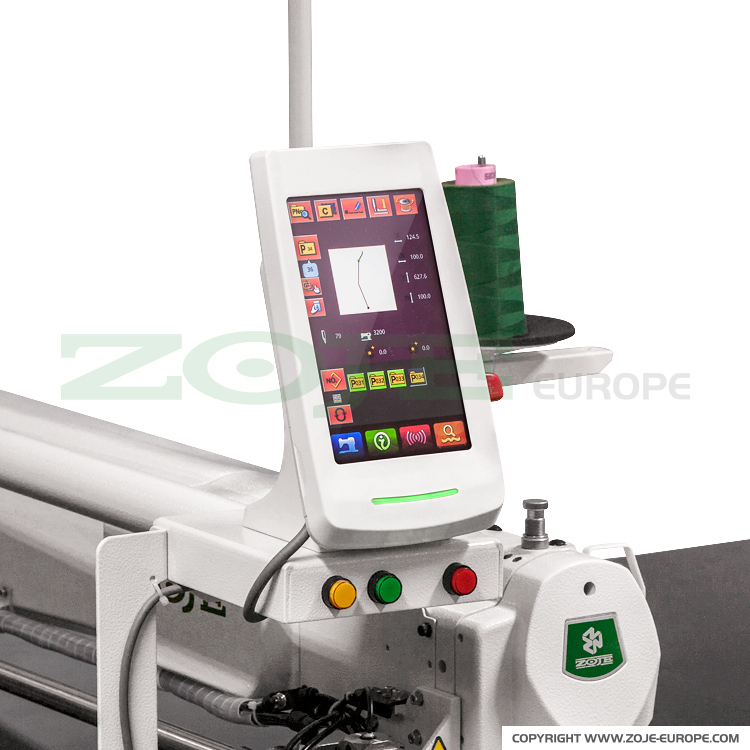

Enables patterns programming on the touch control panel and storing them in memory - up to 999 patterns. Max. stitches amount in pattern 60.000. The editing of already existing as well as already programmed patterns. Control panel with USB port allows importing designs from other devices (supports .dst, .dxf, .vdt files).

Serial equipped with automatic thread trimmer, air blower that works similar as wiper, safety switch and thread breaking detection. Machine with built-in fast and precise stepping motors working in x and y axis and Direct Drive system with servo motor mounted in machine head. PDS Software for pattern making is also included on the SET of this machine.

Barcode scanner included - the machine can store pattern barcode, so it's easy to choose the pattern you want to use.

Working table dimensions - 2292 x 2050 mm.
Standard equipped with rail: length 2000 mm - effective sewing area 1300 x 800 mm.
Option of longer rail: 2800 mm - maximum effective sewing area 2100x800 mm.

Stitch length 0,1 - 12,7 mm, clamp (frame) lifting up to 17mm, auxiliary presser foot up to 10mm, max sewing speed 3.200 s.p.m. Laser power 80W. Compressed air necessary 5 bar. Suitable templates we will prepare according to customer's order.

Needle system: 135x5. For automatic multidirection sewing machines use SCHMETZ needles in MR or SERV 7 version, with correct needle points, depending on the fabric.

Technical specification:

Type of sewing material medium, heavy
Sewing area
Automatic thread trimming yes
Wiper yes
Max. stitch length 12.7 mm
Max. sewing speed
Needle system 135x5
Kit complete set
