ZOJE ZJ-M6-GS900-SF-LASER K2-V2 SET

Pattern sewing machine for very big elements, with laser for cutting in every direction

Compare products

Description:

ZJ-M6-GS900-SF-LASER K2-V2 SET

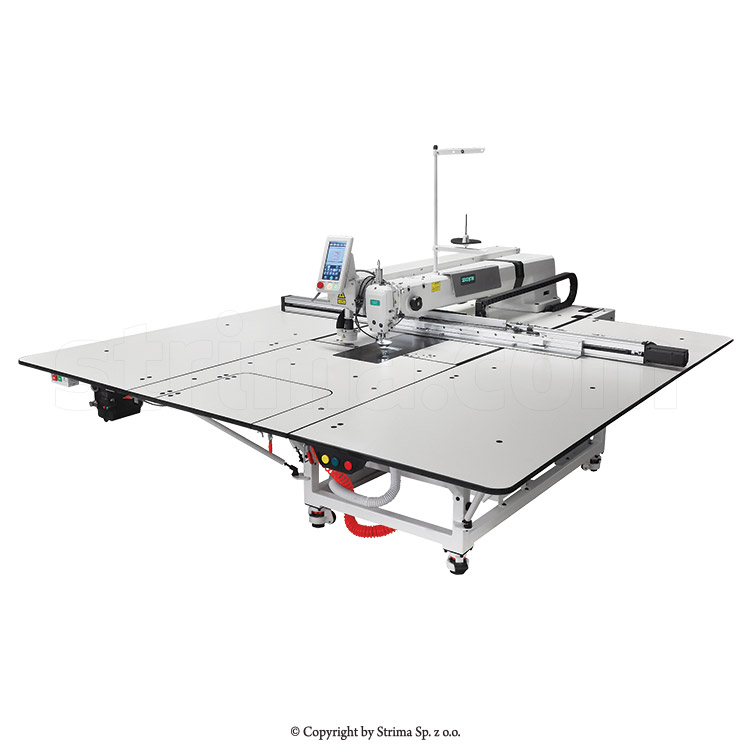

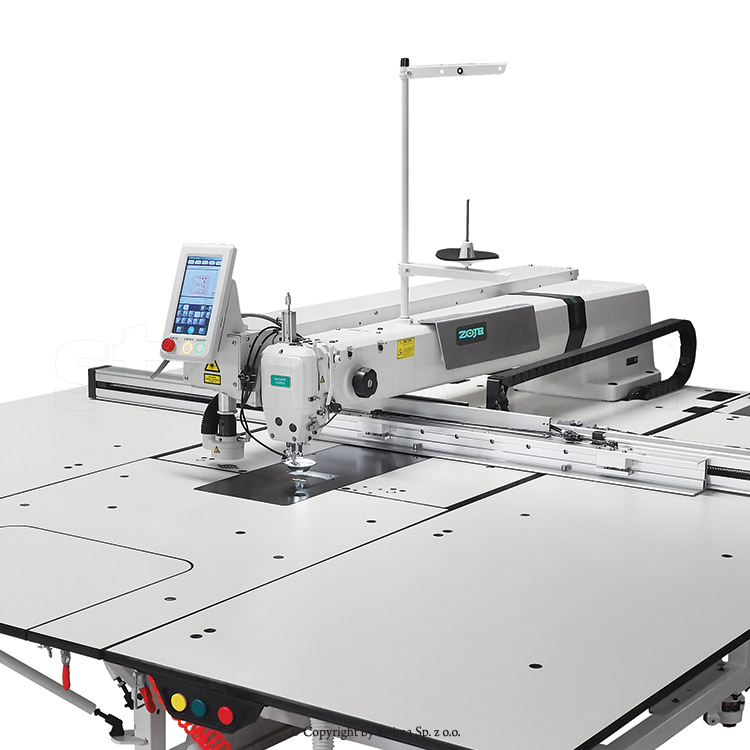

Programmable pattern sewing machine for very large elements, with CO2 laser.



From now on production process will be quicker and easier, - don't waste your time, program your sewing on one element and you will see savings in no time.

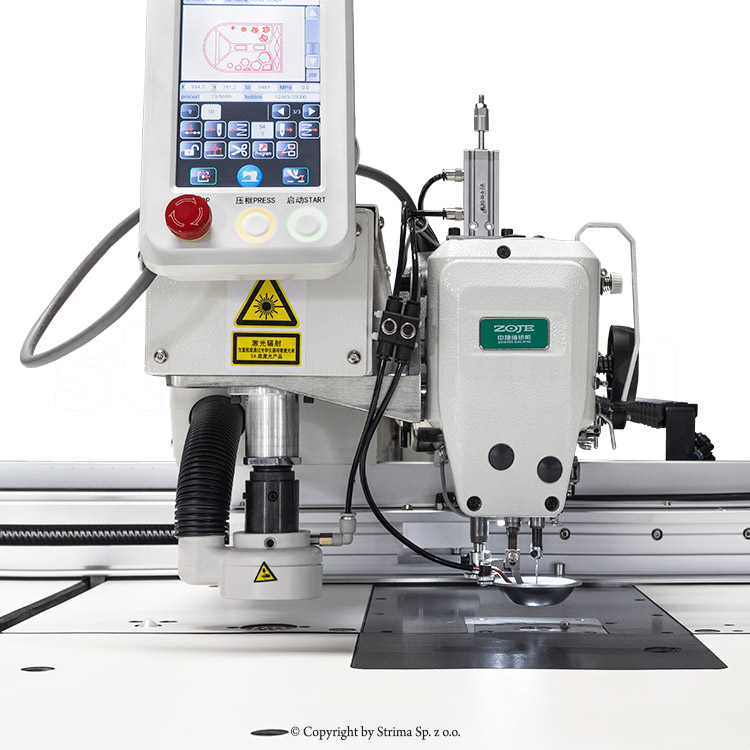

Equipped with CO2 laser (80W) that can cut in every direction - f.e. making round or wavy cut on the material after sewing. Laser tube is installed next to machine head and can cut material from above. The smoke suction available from top and bottom of the table. This solution gives possibility to cut first upper layer of materials or engraving.
Best in production of clothing from every fabric - from sewing zippers or pockets of trousers.
The machine will work wherever the production cycle consists of repetitive processes.
Suitable for the production of quilted jackets or upholstery elements, also automotive.
Template can be adjusted to any element, depends on sewing pattern.

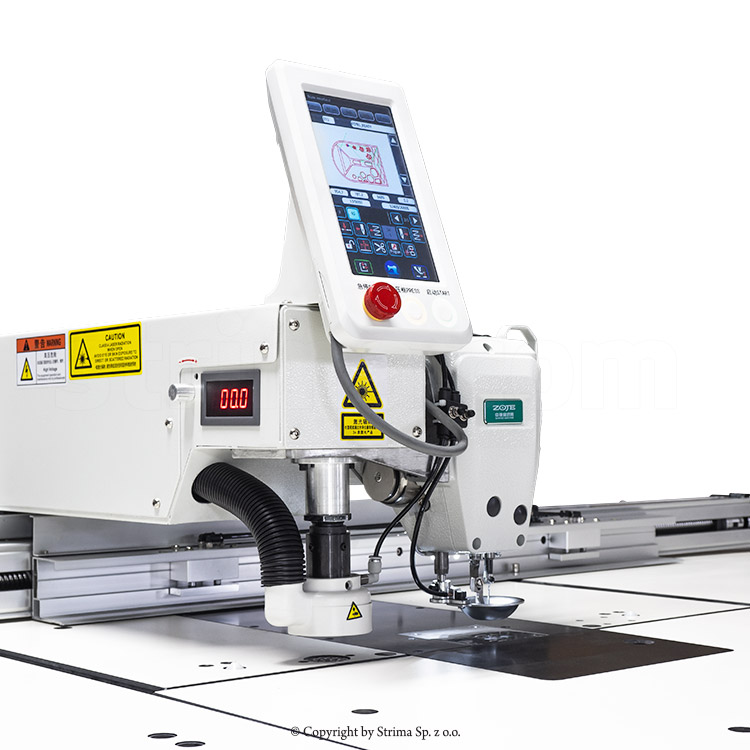

Enables patterns programming on the touch control panel and storing them in memory - up to 999 patterns. The editing of already existing as well as already programmed patterns. Control panel with USB port allows importing designs from other devices (supports .dst, .dxf, .vdt files).

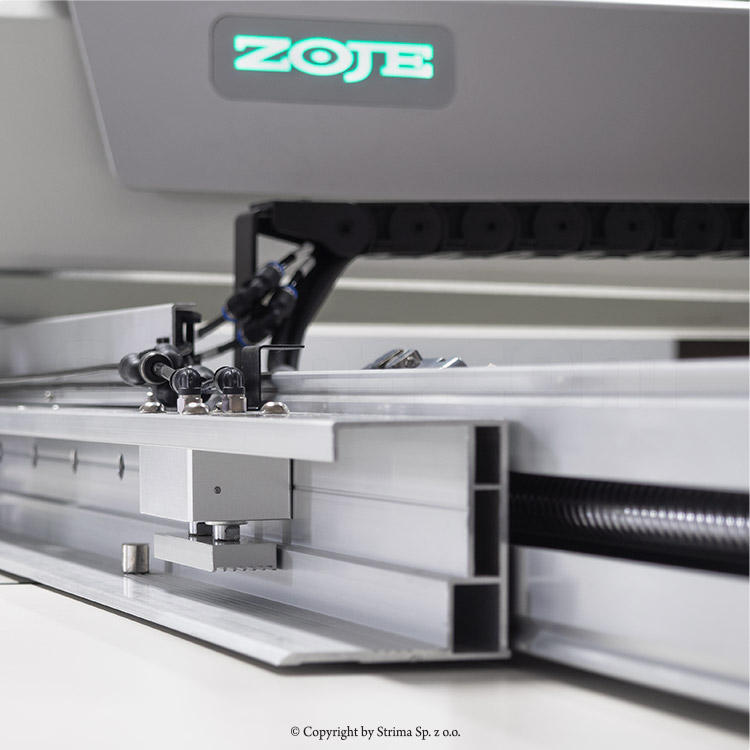

Serial equipped with automatic thread trimmer, air blower that works similar as wiper, safety switch and thread breaking detection. Machine with Direct Drive system with servo motor mounted in machine head and built-in fast and precise stepping motors working in X and Y axis driven by screw system. This new design and new solution of screw system create more stability of arm/rail movement on this machine.
PDS Software for pattern making is also included on the SET of this machine.
RDIF scanner included - the machine can store pattern barcode, so it's easy to choose the pattern you want to use.
Table dimensions - 2060 x 2400 mm
Sewing area 1200 x 900 mm
Stitch length 0,1 - 12,7 mm
clamp lifting - up to 18 mm
max sewing speed - 3.000 s.p.m.
CO2 laser power - 80W
Compressed air necessary - 5 bar

Open frame 130 x 90 cm is included.
Needle system: 135x5. For automatic multidirection sewing machines use SCHMETZ needles in MR or SERV 7 version, with correct needle points, depending on the fabric.

Technical specification:

Type of sewing material
Sewing area
Automatic thread trimming yes
Wiper yes
Max. stitch length 12.7 mm
Max. sewing speed 3000 s.p.m.
Needle system 135x5
Kit complete set
