ZOJE ZJ-M6-S900-SF-V2 SET
Pattern sewing machine for very big elements
Programmable pattern sewing machine for very large elements.
From now on production process will be quicker and easier, - don't waste your time, program your sewing on one element and you will see savings in no time.
Best in production of clothing from every fabric - from sewing zippers or pockets of trousers.
The machine will work wherever the production cycle consists of repetitive processes.
Suitable for the production of quilted jackets or upholstery elements, also automotive.
Template can be adjusted to any element, depends on sewing pattern.
Enables patterns programming on the touch control panel and storing them in memory - up to 999 patterns. The editing of already existing as well as already programmed patterns. Control panel with USB port allows importing designs from other devices (supports .dst, .dxf, .vdt files).
Serial equipped with automatic thread trimmer, air blower that works similar as wiper, safety switch and thread breaking detection. Machine with Direct Drive system with servo motor mounted in machine head and built-in fast and precise stepping motors working in X and Y axis driven by screw system. This new design and new solution of screw system create more stability of arm/rail movement on this machine.
PDS Software for pattern making is also included on the SET of this machine.
RDIF scanner included - so it's easy to choose the pattern you want to use.
Table dimensions - 2060 x 2400 mm
Sewing area 1300 x 900 mm
Stitch length 0,1 - 12,7 mm
clamp lifting - up to 18 mm
max sewing speed - 3.000 s.p.m.
Compressed air necessary - 5 bar
Open frame 700 x 700 mm is included.
The maximum working area of 2000 x 900 mm - with the use of an additional strip
Needle system: 135x5. For automatic multidirection sewing machines use SCHMETZ needles in MR or SERV 7 version, with correct needle points, depending on the fabric.

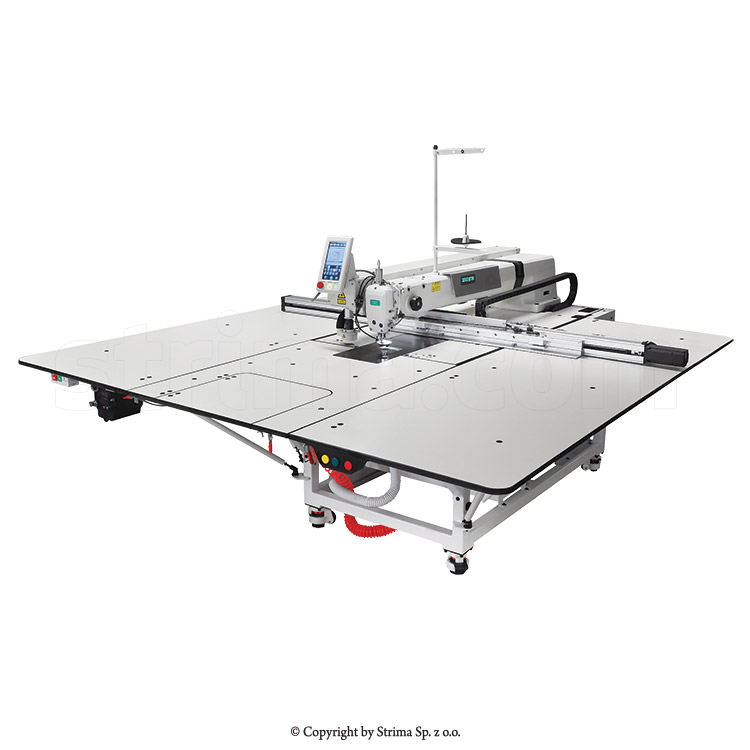

Illustrative photo showing a different model of the machine.
|Type of sewing material||–|
|Automatic thread trimming||yes|
|Max. stitch length||12.7 mm|
|Max. sewing speed||3000 s.p.m.|
