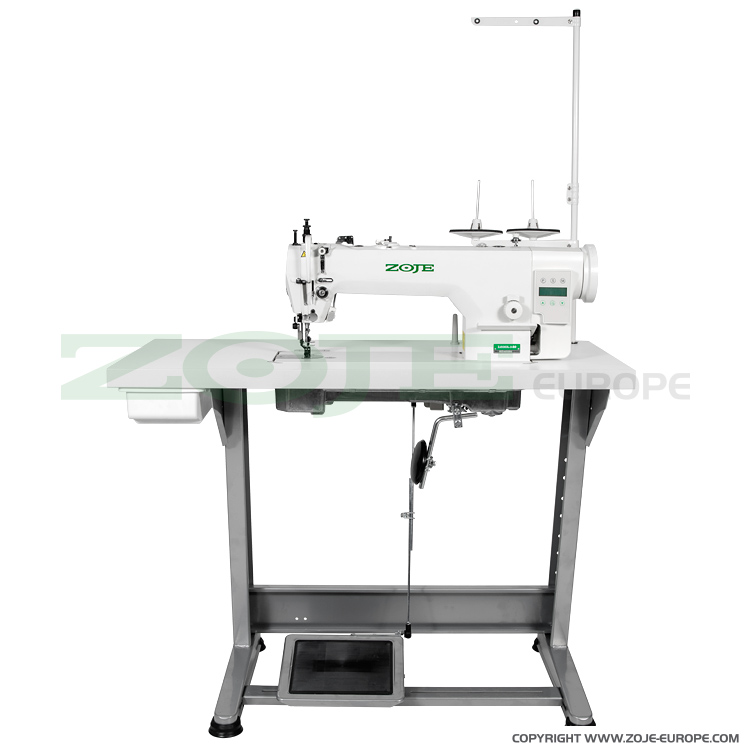

ZOJE ZJ0303L-3-BD SET
Upholstery and leather lockstitch machine with built-in AC Servo motor and control box (Mechatronic), compound feed, large hook - the complete sewing machine
Description:
ZOJE ZJ0303L-3-BD SET is a universal upholstery and leather sewing machine for heavy materials. Machine with the compound feed (bottom and presser foot feed). Large capacity of the bobbin.
Maximum sewing speed 2.000 s.p.m., maximum stitch length 8 mm, high top-feed lift 5 mm. High fabric clearance under the presser foot (16 mm) facilities easy material handling. Machine with increased sewing field (distance between needle bar and machine's arm is 33,5 cm) and also equipped with electronic stitch compensation button.
Complete sewing machine with KESSLER stand and table top.
For this machine we recommend SCHMETZ needles system 135x17 or 135x17 SERV7, with correct needle points, depending on the fabric.
Technical specification:
| Type of sewing material | medium and heavy |
| Type of feed | bottom and walking foot |
| Automatic needle positioning | yes |
| Automatic thread trimming | no |
| Automatic foot lifter | no |
| Automatic bartacking | no |
| Wiper | no |
| Type of lubrication | central circuit |
| Stitch compensation button | yes |
| Side trimmer | no |
| Max. stitch length | 8 mm |
| Presser foot lift height | 16 mm |
| Max. sewing speed | 2000 s.p.m. |
| Needle system | 135x17 |
| Kit | complete set |
