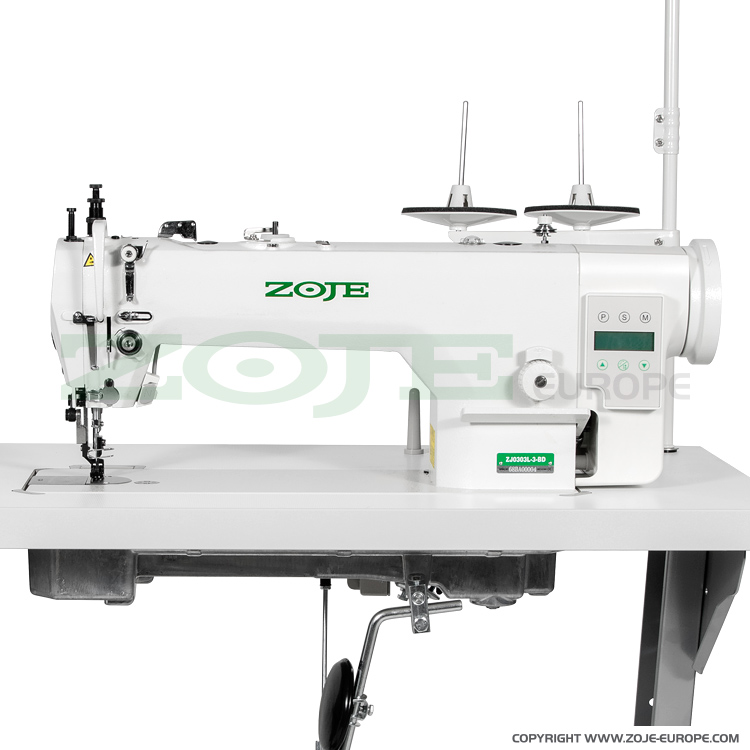

Upholstery and leather lockstitch machine with built-in AC Servo motor and control box (mechatronic), compound feed, large hook
Universal upholstery and leather Zoje sewing machine for heavy materials. Machine with the compound feed (bottom and presser foot feed). Large capacity of the bobbin.
Maximum sewing speed 2.000 s.p.m., maximum stitch length 8 mm, high top-feed lift 5mm. High fabric clearance under the presser foot (16mm) facilities easy material handling. Machine with increased sewing field (distance between needle bar and machine's arm is 33,5 cm).
Machine head with built-in AC Servo Motor and control box (Mechatronic). Direct Drive Servo Motor used in machine eliminates the need for belts. It uses minimal power while idle, power increases only when the treadle is depressed, thus provides an increase in efficiency, quick start-up, eliminates noise (compared with a standard clutch motor) and saves energy.
For this machine we recommend SCHMETZ needles system 135x17 or 135x17 SERV7, with correct needle points, depending on the fabric.
|Type of sewing material||medium and heavy|
|Type of feed||bottom and walking foot|
|Automatic needle positioning||yes|
|Automatic thread trimming||no|
|Automatic foot lifter||no|
|Type of lubrication||central circuit|
|Stitch compensation button||yes|
|Max. stitch length||8 mm|
|Presser foot lift height||16 mm|
|Max. sewing speed||2000 s.p.m.|
