Electronic bartacking machine for heavy materials - complete sewing machine


Electronic bartacking machine for heavy materials - complete sewing machine

Compare products


Electronic bartacking machine for heavy materials. Machine uses bulit-in fast and precise stepping motors working in x and y axis and mini AC Servo motor mounted in machine head. LED lamp for lighting of working field in standard. Max. sewing speed 3.000 s.p.m.

Serial equipped with clamps 20 x 4.5 mm, which allow to obtain max. bartack length 18 mm. 15 bartacking patterns in standard, that can be modified and saved on the control panel. Direct and fast access to 5 preferred patterns.

After changing the clamp to appropriate, access to 100 fixed patterns (vertical, horizontal, half-round, round.).
Additionally, as an option, 6 other clamps: 21x5,1 mm, 27x5 mm, 10x4,5 mm, 5,6x23 mm, 2x20 mm, 20x40 mm.

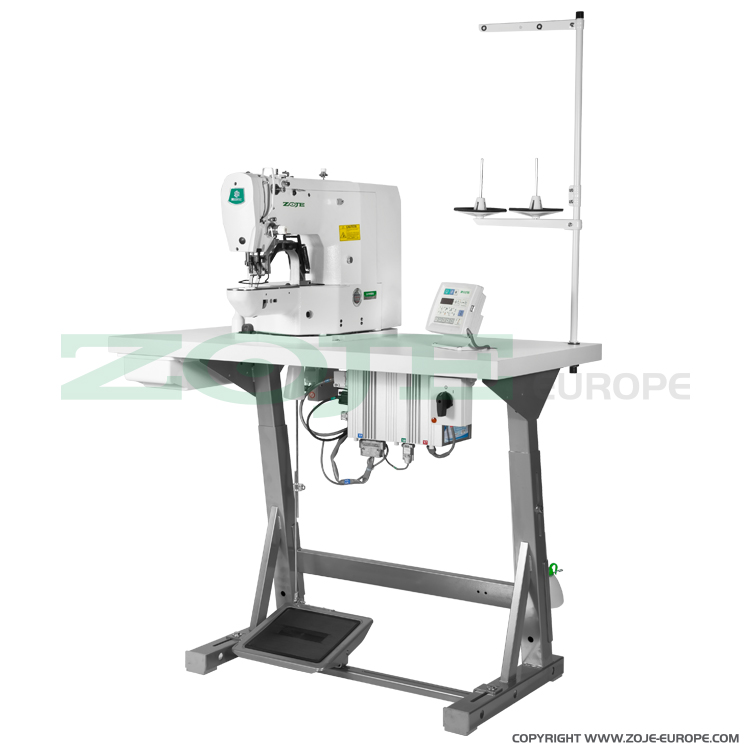

Complete sewing machine with Kessler stand and table top.

For this machine we recommend SCHMETZ needles system 135x5 or 135x5 SERV7 with correct needle points, depending on the fabric.

Technical specification:

Type of sewing material
LED lighting of working field
Serial clamp size
Max. bartack size
Bartacking patterns (standard clamp)
Bartacking patterns (after changing clamp)
Max. sewing speed
Needle system
