Pattern sewing machines


ZOJE ZJ1900DSS-0604-3-P-J-TP/04

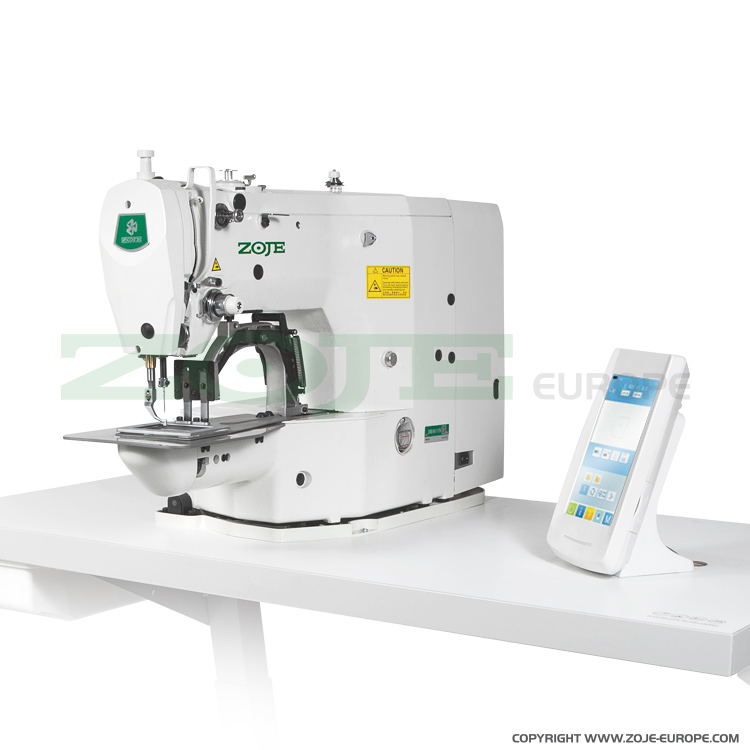

Pattern sewing machine - machine head
Description:
Programmable pattern sewing machine for decorative patterns, with sewing area 60x40 mm. 56 build-in patterns. Enables additional patterns programming on the touch control panel and storing them in memory (DXF, DST, VDT files). Sewing area 60x40 mm, stitch length 0,1 - 10 mm, clamp (frame) lifting up to 17 mm, max sewing speed 2.500 s.p.m. Designed for sewing medium materials.
Serial equipped with clamp 60 x 40 mm, automatic thread trimmer, controller of the initial stitch. Controlled by two separate pedals, for sewing and clamp raising. Machine uses bulit-in fast and precise stepping motors working in x and y axis and mini AC Servo motor mounted in machine head. LED lamp for lighting of working field in standard.
To maximize the performance of this machine, in standard equipement we offer a complete set of clamps and plates for sewing areas: 20x4,5mm; 21x5,1mm; 10x3,4mm; and 27x5mm.
For this machine we recommend SCHMETZ needles system 135x5 or 135x5 SERV7, with correct needle points, depending on the fabric.
Technical specification:
Type of sewing material | medium |
Sewing area | 60x40 mm |
Automatic thread trimming | yes |
Wiper | no |
Max. stitch length | 10 mm |
Max. sewing speed | 2500 s.p.m. |
Needle system | 135x5 |
Kit | head |
