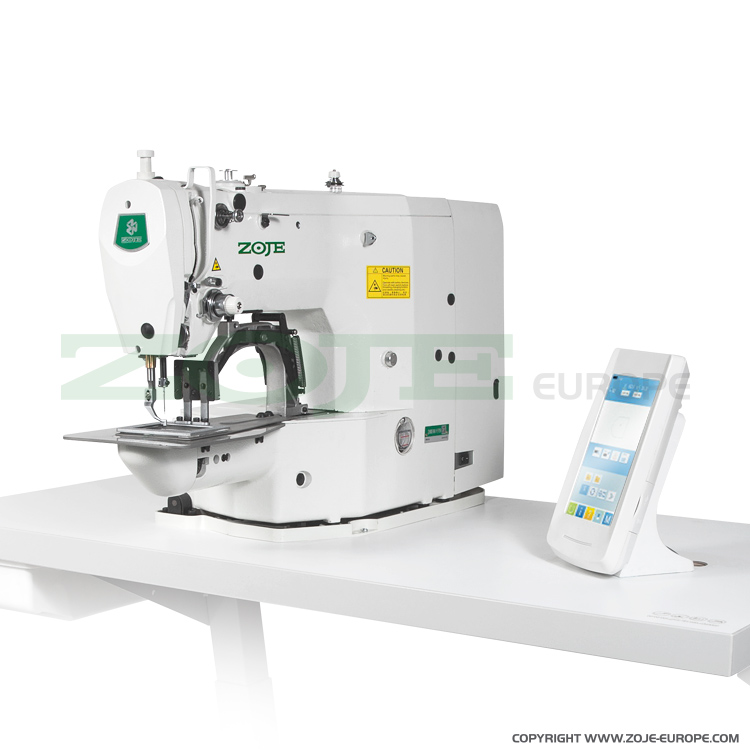

ZOJE ZJ1900DSS-0604-3-P-J-TP/04 SET

Pattern sewing machine - complete machine

Compare products


Programmable pattern sewing machine. 56 build-in patterns. Enables additional patterns programming on the touch control panel and storing them in memory (DXF, DST, VDT files). Sewing area 60x40 mm, stitch length 0,1 - 10 mm, clamp (frame) lifting up to 17 mm, max sewing speed 2.500 s.p.m. Designed for sewing medium materials.

Serial equipped with clamp 60 x 40 mm, automatic thread trimmer, controller of the initial stitch. Controlled by two separate pedals, for sewing and clamp raising. Machine uses bulit-in fast and precise stepping motors working in x and y axis and mini AC Servo motor mounted in machine head. LED lamp for lighting of working field in standard.

To maximize the performance of this machine, in standard equipement we offer a complete set of clamps and plates for sewing areas: 20x4,5mm; 21x5,1mm; 10x3,4mm; and 27x5mm.
Compressed air necessary 5 bar.

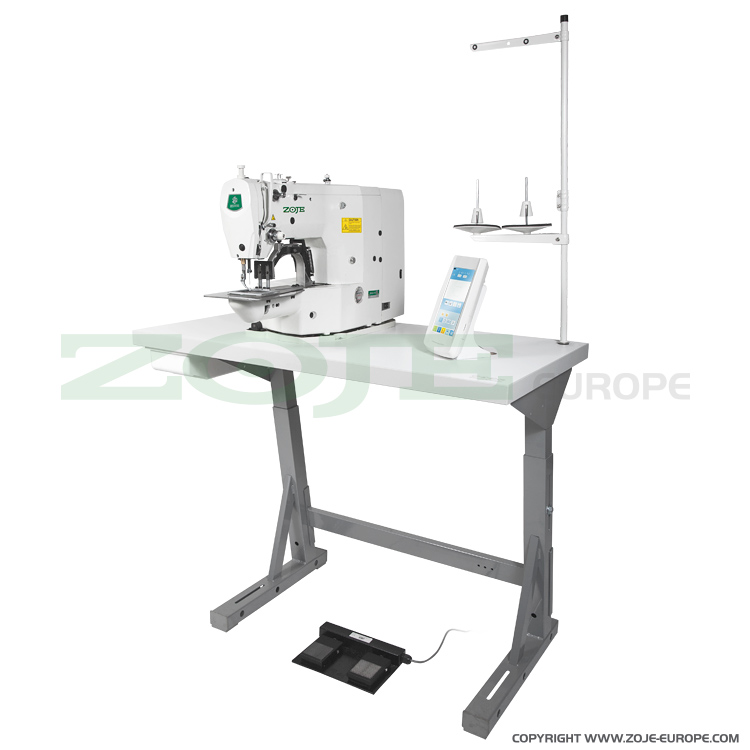

Complete sewing machine with Kessler stand and table top.

For this machine we recommend SCHMETZ needles system 135x17 or 135x17 SERV7, with correct needle points, depending on the fabric.

Technical specification:

Type of sewing material medium
Sewing area 60x40 mm
Automatic thread trimming yes
Wiper no
Max. stitch length 10 mm
Max. sewing speed 2500 s.p.m.
Needle system 135x17
Kit complete set
