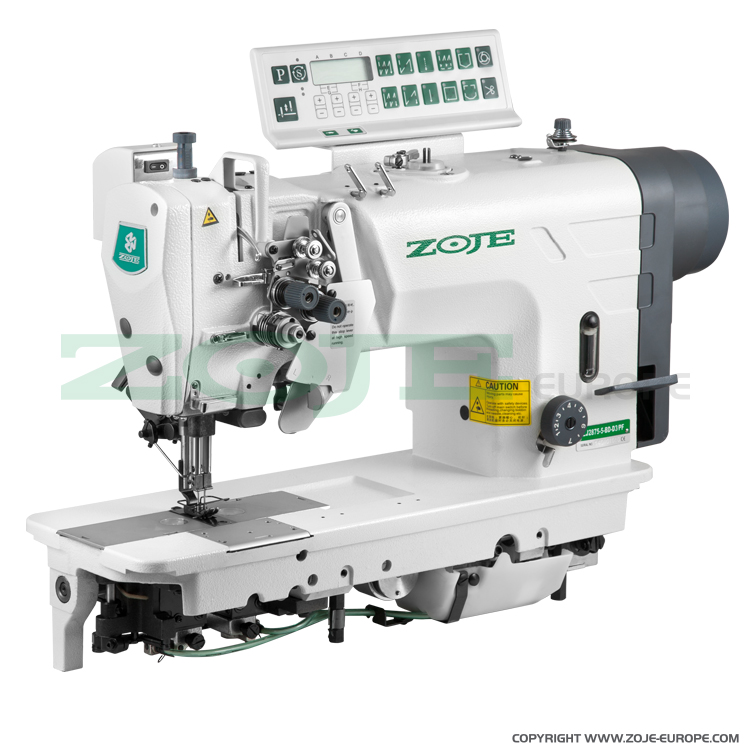

2- needle automatic lockstitch machine for medium and heavy materials, with built-in AC Servo motor, split needles, large hooks - machine head
2-needle automatic lockstitch machine with split needles and large hooks, for medium and heavy materials. With energy-saving AC Servo motor built-in into machine head. Serial equipped with automatic functions: thread trimmer, reverse feeding with programmed size of the initial and final bartack, foot lifter, needle positioning, wiper, programming control panel and integrated 3-degree, energy-saving LED lamp for lighting of working field.
Bottom feed and needle feed, needle gauge 6,4 mm, max. sewing speed 3.000 s.p.m., stitch length up to 7 mm, central lubrication.
For this machine we recommend SCHMETZ needles system 135x5 or 135x5 SERV7 with correct needle points, depending on the fabric.
|Type of sewing material||medium, heavy|
|Type of feed||bottom, needle|
|Built-in motor (direct drive)||yes|
|Needle gauge of 2-needle machine||6.4 mm|
|Automatic needle positioning||yes|
|Automatic thread trimming||yes|
|Automatic foot lifter||yes|
|LED lighting of working field||yes|
|Max. stitch length||7 mm|
|Presser foot lift height||13 mm|
|Max. sewing speed||3000 s.p.m.|
|Kit||head with built-in Servo motor and programming control panel|
