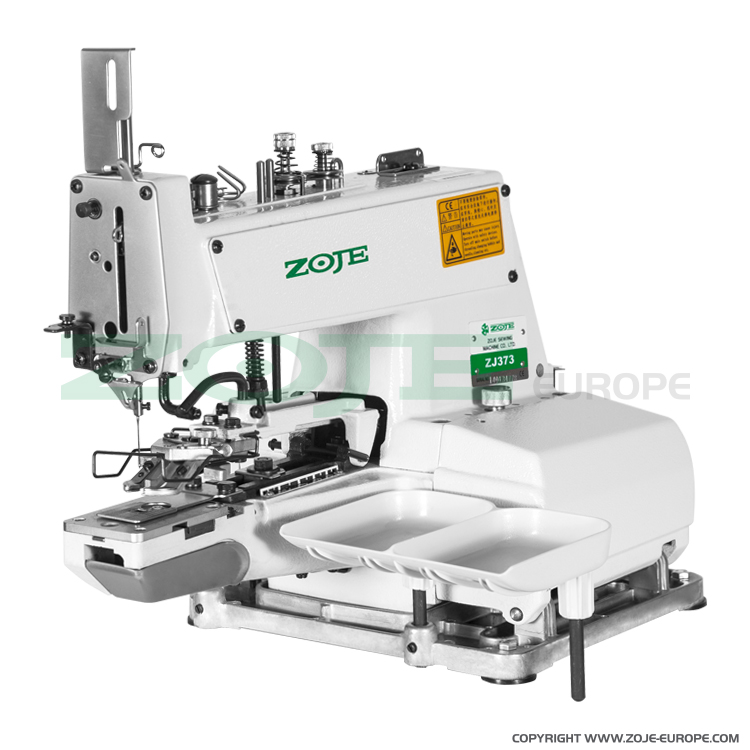

Button sewing machine - machine head


Button sewing machine - machine head

Compare products


Machine used to sew-on flat or post buttons. 4-hole buttons sewing-on with parallel method and 2-hole buttons sewing-on with parallel method. Standard equipment includes clamp (holder) for sewing-on flat buttons. Post buttons can be sewing-on after installing special clamp (holder) no. B2401-373-0B0.

The machine sews-on buttons of diameter 10 - 27 mm and buttonholes distance 2.5 - 6.5 mm. Depending on the button size and post width, it is necessary to use special supports and adaptors. Max. sewing speed 1.500 s.p.m., 8, 16 or 32 stitches in cycle, thread trimmer.

For this machine we recommend SCHMETZ needles system TQx1 or TQx7 with correct needle points, depending on the fabric.

Technical specification:

Type of sewing material light, medium
Button diameter 10 - 27 mm
Max. sewing area 6.5 - 6.5 mm
Automatic thread trimming yes
Pattern quantity 2
Max. sewing speed 1500 s.p.m.
Needle system TQX1 / TQX7
Kit head
