Sewing machines

1-needle flat bed lockstitch machines with bottom feed

Lockstitch machine with side trimmer, for light and medium materials, with built-in AC Servo motor and needle positioning - machine head

ZOJE ZJ5303A-W-BD/02

Lockstitch machine with side trimmer, for light and medium materials, with built-in AC Servo motor and needle positioning - machine head

Compare products

Description:

Universal 1-needle lockstitch machine with side trimmer 4.8 mm (possible to switch off), for light and medium materials. Equipped with energy-saving AC Servo motor built-in into machine head and automatic needle positioning (top - bottom).

Bottom feed, max. sewing speed 4.500 s.p.m., max. stitch length 5 mm, foot lifting up to 8.5 mm, central lubrication. Equipped with an extra set for changing the width of the lay end from 4.8mm to 3,2mm and 6.4mm width, and needle plate to sew without side trimming function.

For this machine we recommend SCHMETZ needles system 135x5 or 135x5 SERV7, with correct needle points, depending on the fabric.

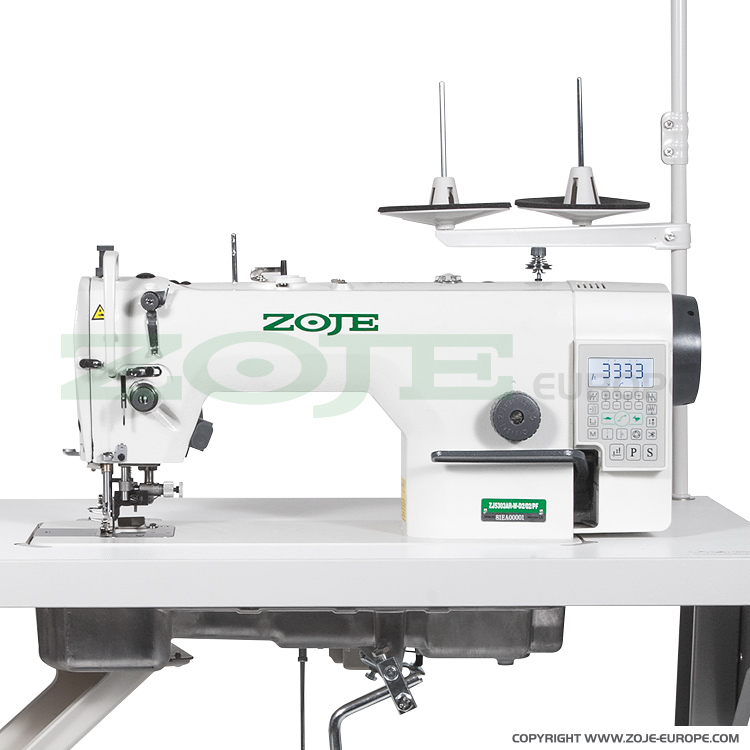

Sample photo, may slightly differ from the actual appearance of the machine.

Technical specification:

Type of sewing material
Type of feed
Built-in motor (direct drive)
Automatic needle positioning
Automatic thread trimming
Automatic foot lifter
Automatic bartacking
Wiper
Type of lubrication
Stitch compensation button
Side trimmer
LED lighting of working field
Max. stitch length
Presser foot lift height
Max. sewing speed
Needle system
Kit
