1-needle flat bed lockstitch machines with bottom feed

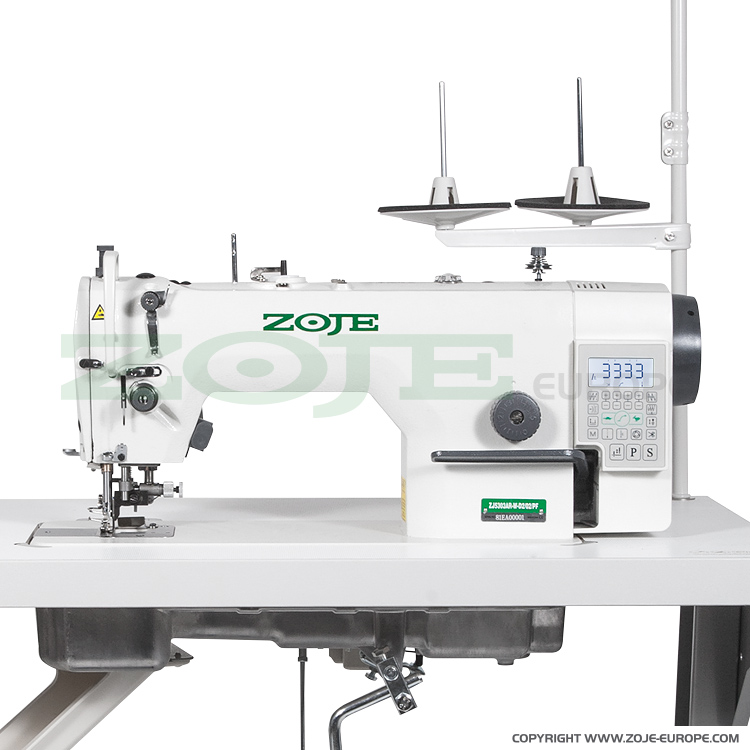

ZOJE ZJ5303AR-48-W-D2-02-PF
Automatic lockstitch machine with side trimmer, for light and medium materials, with built-in AC Servo motor - machine head
Description:
Universal 1-needle lockstitch machine with side trimmer 4.8 mm (possible to switch off), for light and medium materials. With energy-saving AC Servo motor built-in into machine head. Serial equipped with automatic functions: thread trimmer, reverse feeding with programmed size of the initial and final bartack, foot lifter, needle positioning and programming control panel. Integrated 3-degree, energy-saving LED lamp for lighting of working field.
Bottom feed, max. sewing speed 5.000 s.p.m., max. stitch length 5 mm, foot lifting up to 8.5 mm, central lubrication. Equipped with an extra set for changing the width of the lay end from 4.8mm to 3,2mm and 6.4mm width, and needle plate to sew without side trimming function.
For this machine we recommend SCHMETZ needles system 135x5 or 135x5 SERV7, with correct needle points, depending on the fabric.
Technical specification:
| Type of sewing material | light, medium |
| Type of feed | bottom |
| Built-in motor (direct drive) | yes |
| Automatic needle positioning | yes |
| Automatic thread trimming | yes |
| Automatic foot lifter | yes |
| Automatic bartacking | yes |
| Wiper | no |
| Type of lubrication | central circuit |
| Stitch compensation button | no |
| Side trimmer | yes |
| LED lighting of working field | yes |
| Max. stitch length | 5 mm |
| Presser foot lift height | 8.5 mm |
| Max. sewing speed | 5000 s.p.m. |
| Needle system | 135x5 |
| Kit | head with built-in Servo motor and programming control panel |
