ZOJE ZJ5303AR-48-W-D2-02-PF SET

Automatic lockstitch machine with side trimmer, for light and medium materials, with built-in AC Servo motor - complete sewing machine

Compare products

Description:

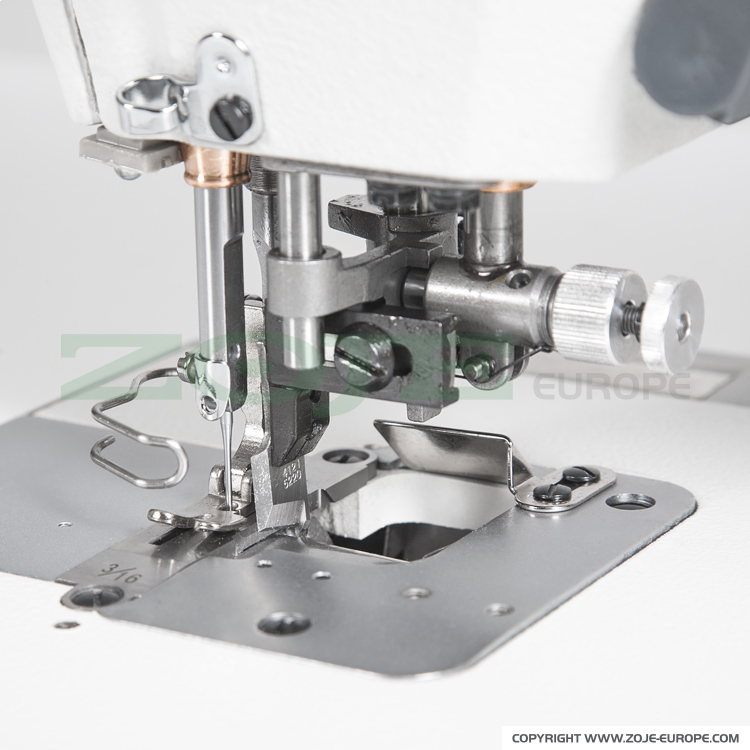

Universal 1-needle lockstitch machine with side trimmer 4.8 mm (possible to switch off), for light and medium materials. With energy-saving AC Servo motor built-in into machine head. Serial equipped with automatic functions: thread trimmer, reverse feeding with programmed size of the initial and final bartack, foot lifter, needle positioning and programming control panel. Integrated 3-degree, energy-saving LED lamp for lighting of working field.

Bottom feed, max. sewing speed 5.000 s.p.m., max. stitch length 5 mm, foot lifting up to 8.5 mm, central lubrication. Equipped with an extra set for changing the width of the lay end from 4.8mm to 3,2mm and 6.4mm width, and needle plate to sew without side trimming function.

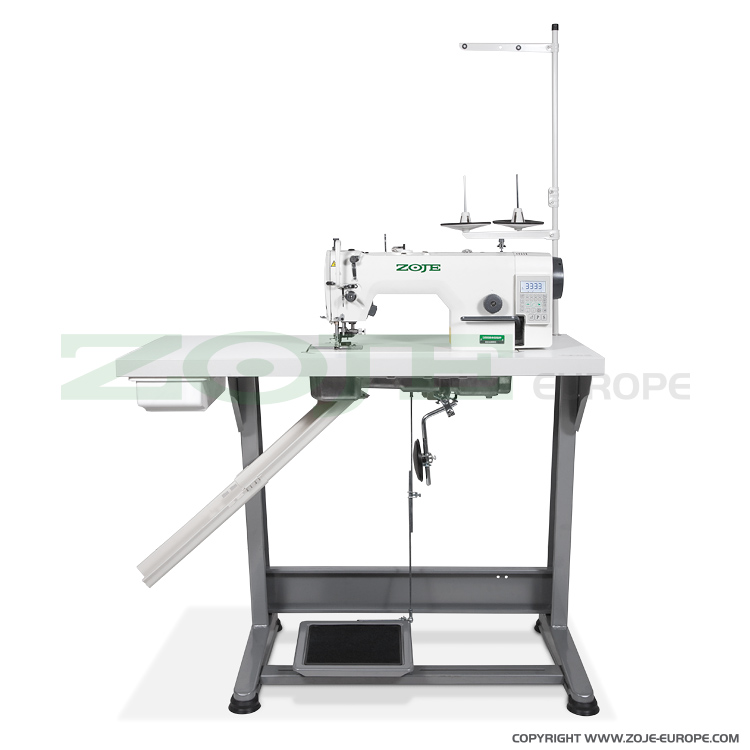

Complete sewing machine with Kessler stand and table top.

For this machine we recommend SCHMETZ needles system 135x5 or 135x5 SERV7, with correct needle points, depending on the fabric.

Technical specification:

Type of sewing material light, medium
Type of feed bottom
Built-in motor (direct drive) yes
Automatic needle positioning yes
Automatic thread trimming yes
Automatic foot lifter yes
Automatic bartacking yes
Wiper no
Type of lubrication central circuit
Stitch compensation button no
Side trimmer yes
LED lighting of working field yes
Max. stitch length 5 mm
Presser foot lift height 8.5 mm
Max. sewing speed 5000 s.p.m.
Needle system 135x5
Kit complete set
