Pattern sewing machines
ZOJE ZJ5770A-1510HD

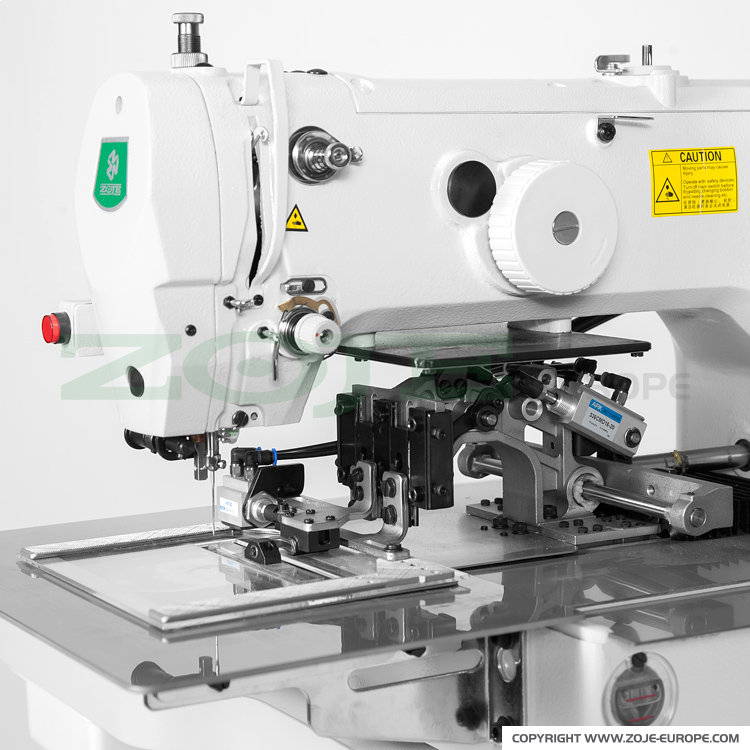

Pattern sewing machine with flip function - machine head
Description:
Programmable pattern sewing machine with flip function (reversible inside pressing clamp). Enables patterns programming on the touch control panel and storing them in memory - up to 999 patterns. The editing of already existing as well as already programmed patterns.
Control panel with USB port allows importing designs from other devices (supports .dxf files).

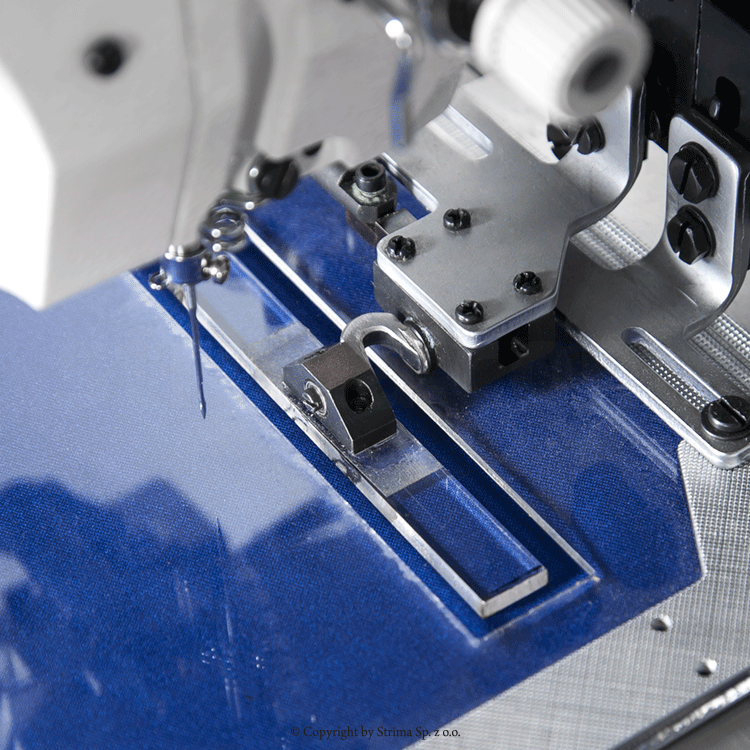

Machine with additional presser clamp for sewing on emblems, labels, Velcro, labels etc.
Version for medium and heavy materials.
Serial equipped with automatic thread trimmer, wiper, safety switch. Machine with built-in fast and precise stepping motors working in x and y axis and Direct Drive system with servo motor mounted in machine head.
Working area 15 x 10 cm, with sewing area 13 x 9 cm (with inside pressing clamp), stitch length 0,1 - 12,7 mm, clamp (frame) lifting up to 30 mm, max sewing speed 2.800 s.p.m. Compressed air necessary 5 bar.
For this machine we recommend SCHMETZ needles system 135x17 or 135x17 SERV7 and 135x5 or 135x5 SERV7, with correct needle points, depending on the fabric.
Technical specification:
| Type of sewing material | medium, heavy |
| Type of feed | – |
| Sewing area (in millimeters) | 150 x 100 mm |
| Automatic needle positioning | – |
| Automatic thread trimming | yes |
| Wiper | – |
| LED lighting of working field | – |
| Max. stitch length | 12.7 mm |
| Presser foot lift height | – |
| Max. sewing speed | 2800 s.p.m. |
| Built-in AC Servo motor | – |
| Needle system | 135X17 |
| Kit | head with built-in Servo motor |
