Pattern sewing machines

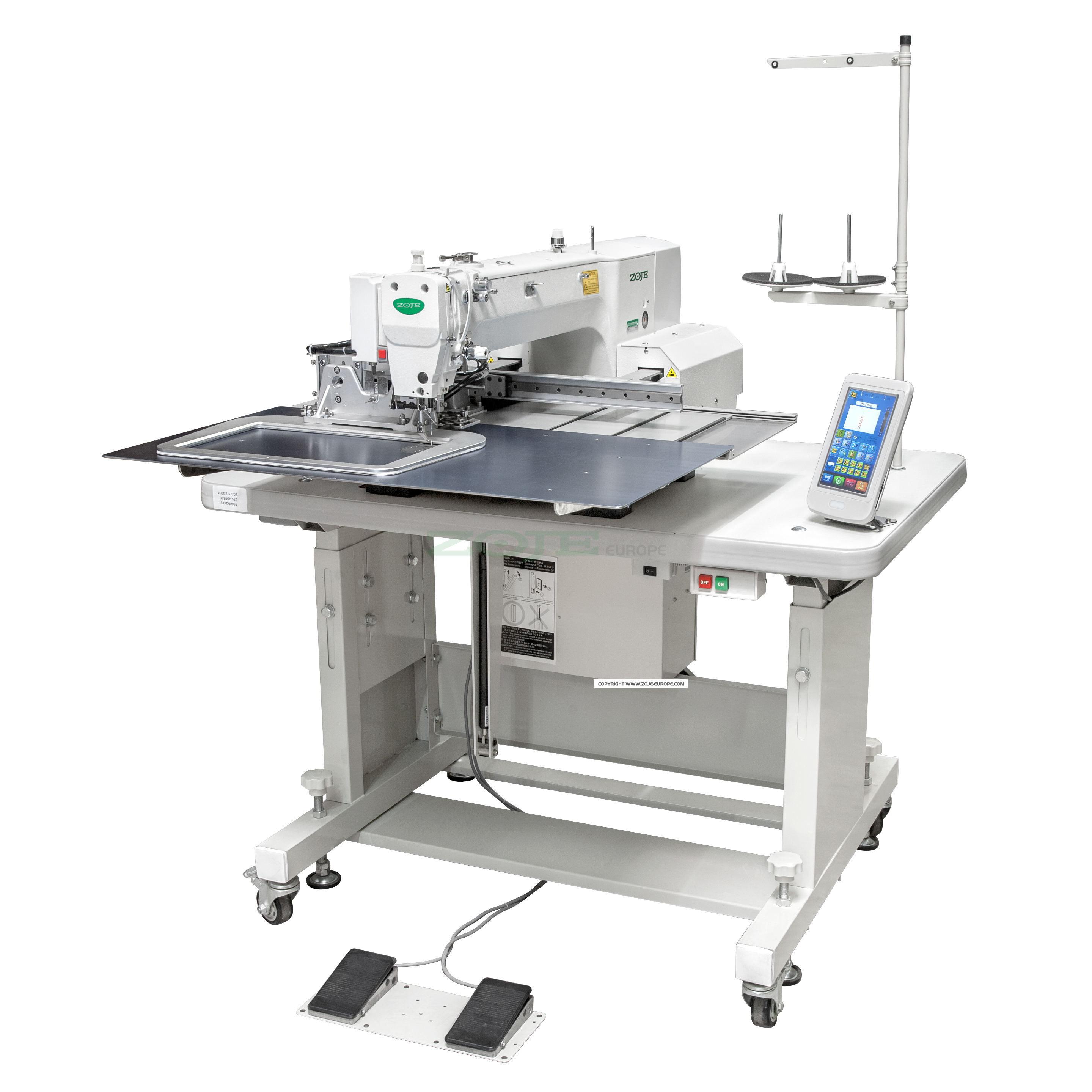

ZOJE ZJ5770B-3020GB SET
Pattern sewing machine - complete sewing machine
Description:
Programmable pattern sewing machine. Enables patterns programming on the touch control panel and storing them in internal memory to more than 500 patterns, or total 500.000 stitches with 20.000 stitches per pattern. The editing of already existing as well as already programmed patterns.
Control panel with USB port allows importing designs from other devices (supports .dxf files). Version for medium and heavy materials.
Serial equipped with automatic thread trimmer, wiper, safety switch. Machine with built-in fast and precise stepping motors working in x and y axis and Direct Drive system with servo motor mounted in machine head.
Max sewing area 30 x 20 cm, stitch length 0,1 - 12,7 mm, clamp (frame) lifting up to 22 mm, max sewing speed 2.800 s.p.m. Compressed air necessary 5 bar.
Complete sewing machine with Zoje stand and table top.
For this machine we recommend SCHMETZ needles system 135x17 or 135x17 SERV7, with correct needle points, depending on the fabric.
Technical specification:
| Type of sewing material | – |
| Type of feed | – |
| Sewing area (in millimeters) | – |
| Automatic needle positioning | – |
| Automatic thread trimming | – |
| Wiper | – |
| LED lighting of working field | yes |
| Max. stitch length | – |
| Presser foot lift height | – |
| Max. sewing speed | – |
| Built-in AC Servo motor | – |
| Needle system | – |
| Kit | – |
