Sewing machines

Buttonhole machines straight

Electronic buttonhole machine - machine head

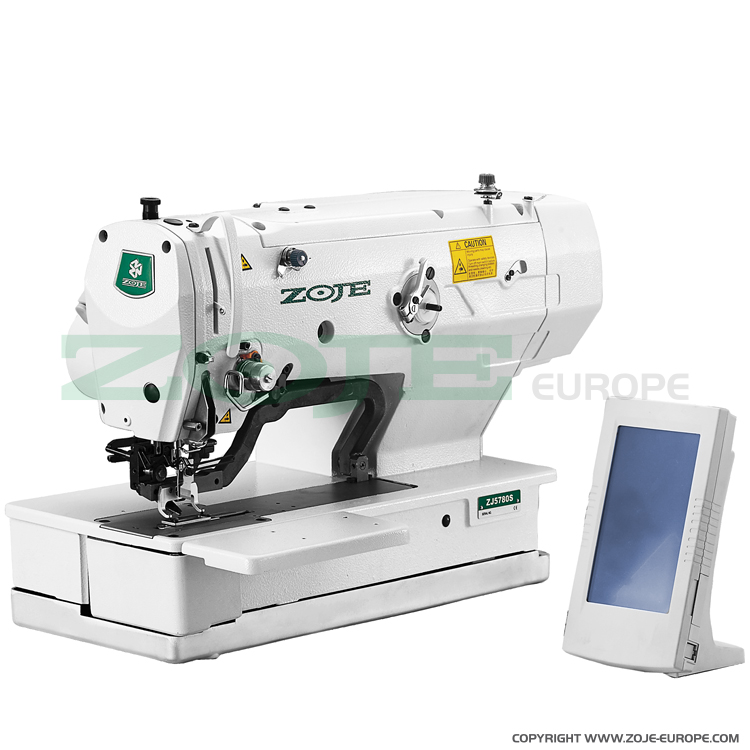

ZOJE ZJ5780S

Electronic buttonhole machine - machine head

Compare products

Description:

Multifunctional, electronic controlled and programmed buttonhole machine. Equipped with built-in fast and precise stepping motors working in x and y axis and Direct Drive system with servo motor mounted in machine head.

Automatic functions: foot lifter, thread trimming, fabric feeding, sewing speed regulation, cloth cutting mechanism (multi-cut system - buttonhole of any length, without changing the knife).

Machine equipped with the safety device which prevents fabric from cutting in case of thread breaking. Thanks to applying a modern technology, lubrication is limited to the minimum (what prevents the formation of spots on the sewing products). LED lamp for lighting of working field in standard. For sewing light and medium materials.

Machine equipped with touch control panel. 30 buttonhole patterns in standard (including 4 bar tacking programs). Possibility of self designing of buttonholes and storing them in panel (up to 99 programs).

Serial clamps size 29 x 5 mm and 40 x 6 mm. Buttonhole cut-out length 6.4 - 31.8 mm, max. foot presser lift 17 mm, max. sewing speed 3.600 s.p.m.

For this machine we recommend SCHMETZ needles system 135x5 or 135x5 SERV7 with correct needle points, depending on the fabric.

Technical specification:

Type of sewing material light, medium
Type of buttonole machine programmable
Buttonhole type lockstitch buttonhole
Buttonhole width 2.5 - 5.0 mm
Buttonhole length 9.4 - 34.0 mm
Length of the cutting knife 6.4 - 31.8 mm
Max. sewing speed 3600 s.p.m.
Needle system 135x5
Kit head with built-in Servo motor and programming control panel
