Buttonhole machines straight

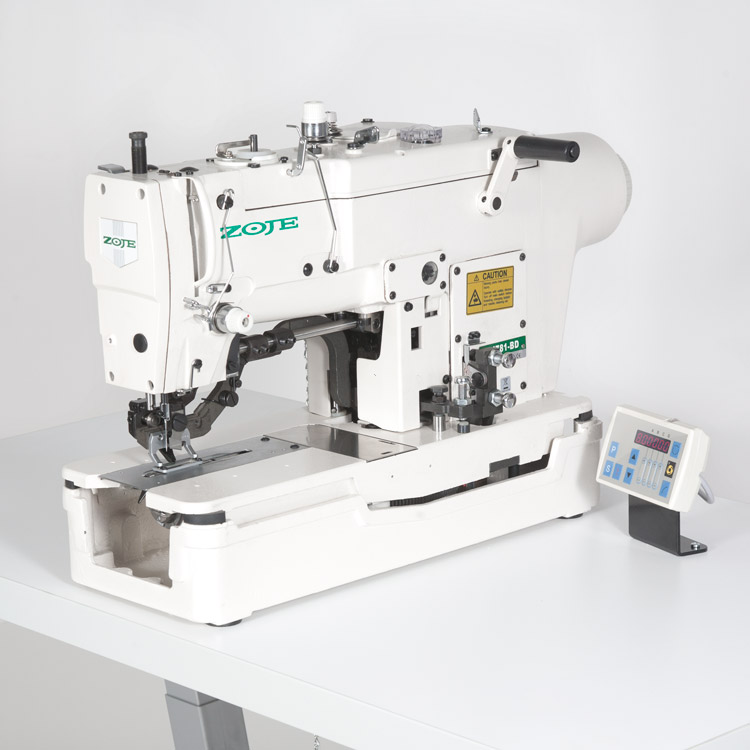

ZOJE ZJ781-BD
Buttonhole machine with built in motor - machine head
Description:
Buttonhole machine with thread trimmer and built in motor on machine head, designed for sewing light and medium materials. Equipped with the safety device which prevents fabric from cutting in case of thread breaking. Number of stitches changed by spur gears.
Serial clamps size: 40 mm x 6.6 mm. Buttonhole length 6.4 - 25.4 mm, cut-out length 6.4 - 19.1 mm, max. presser foot lift 12 mm, max. sewing speed 3.600 s.p.m. This machine also equipped with additional knife and presser foot for button hole size 31,75 mm.
For this machine we recommend SCHMETZ needles system 135x5 or 135x5 SERV7, with correct needle points, depending on the fabric.
Technical specification:
| Buttonhole type | lockstitch buttonhole |
| Type of sewing material | light, medium |
| Type of buttonhole machine | electronic |
| Type of feed | – |
| Automatic needle positioning | – |
| Automatic thread trimming | – |
| Buttonhole width | 2.5 - 5.0 mm |
| Buttonhole length | 6.4 - 25.4 mm |
| Cut-out length | 4.8 - 19.1 mm |
| LED lighting of working field | – |
| Max. stitch length | – |
| Presser foot lift height | – |
| Max. sewing speed | 3600 s.p.m. |
| Built-in AC Servo motor | – |
| Needle system | 135X5 |
| Kit | head with Servo motor and programming control panel |
