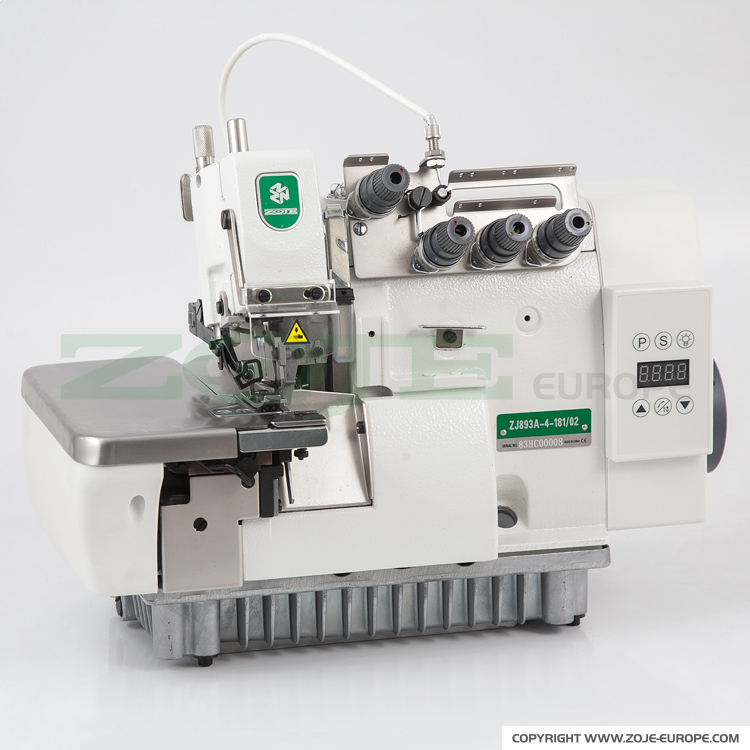

4-thread overlock machine (backlatching) all in one Mechatronic with built-in AC Servo motor and control box, with needles positioning - machine head
2-needle / 4-thread overlock machine (backlatching) for light and medium materials. Equipped with energy-saving AC Servo motor built-in into machine head and automatic needle positioning (top - bottom). AC Servo motor saves up to 70% energy comparing to a conventional electronic motor or clutch motor. Ensures quiet work without adverse vibration.
Needles gauge 2 mm, seam width 4 mm (safety stitch 6 mm), presser foot lifting max 5.5 mm, max. sewing speed 6500 s.p.m., differential bottom feed, central lubrication.
For this machine we recommend SCHMETZ needles system B-27 with correct needle points, depending on the fabric.
|Type of sewing material||light, medium|
|Built-in motor (direct drive)||yes|
|Number of threads||5|
|Automatic needle positioning||–|
|Automatic thread trimming||no|
|Automatic foot lifter||–|
|Total seam width||11 mm|
|Presser foot lift height||6 mm|
|Max. sewing speed||6500 s.p.m.|
|Kit||head with built-in Servo motor and programming control panel|
