Sewing machines

Overlock (safety stitch) machines 5-thread

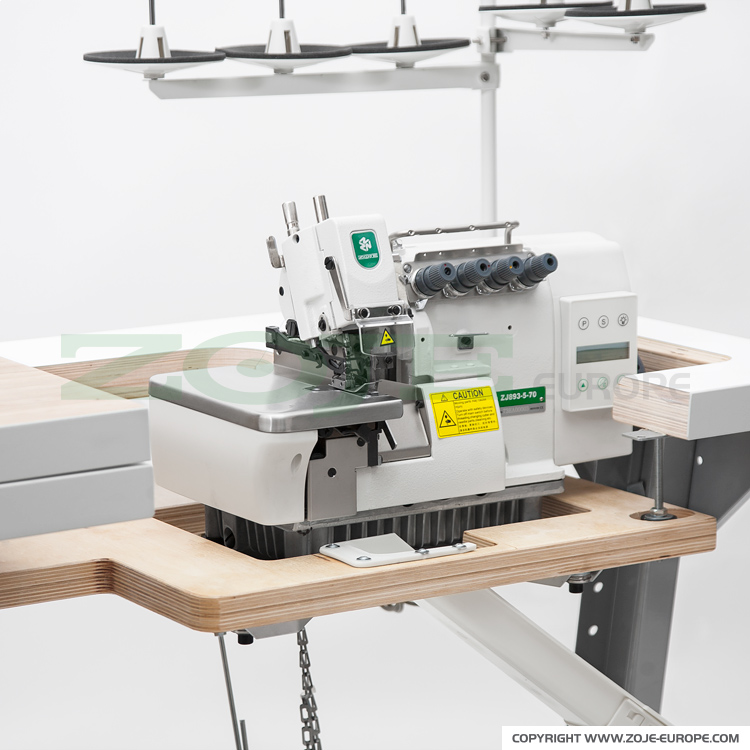

5-thread mechatronic overlock machine for light and medium materials, with built-in AC Servo motor and needles positioning - machine head

ZOJE ZJ893A-5-70

5-thread mechatronic overlock machine for light and medium materials, with built-in AC Servo motor and needles positioning - machine head

Compare products

Description:

2-needle / 5-thread overlock (safety stitch) machine (stitch type 516) for light and medium materials. Equipped with energy-saving AC Servo motor built-in into machine head and automatic needle positioning (top - bottom). AC Servo motor saves up to 70% energy comparing to a conventional electronic motor or clutch motor. Ensures quiet work without adverse vibration.

Needles gauge 5 mm, seam width 5 mm (10 mm with safety stitch), max. sewing speed 6.000 s.p.m., differential bottom feed, central lubrication.

For this machine we recommend SCHMETZ needles system B-27 with correct needle points, depending on the fabric.

Technical specification:

Type of sewing material light, medium
Built-in motor (direct drive) yes
Number of threads 5
Automatic needle positioning no
Automatic thread trimming no
Automatic foot lifter no
Automatic bartacking
Overedging width 5 mm
Total seam width 10 mm
Presser foot lift height 6 mm
Max. sewing speed 6000 s.p.m.
Needle system B-27
Kit head with built-in Servo motor and programming control panel
