Sewing machines

Overlock (safety stitch) machines 5-thread

5-thread automatic overlock (safety stitch) machine, light and medium materials, direct drive needle bar, built-in Servo motor and control box - machine head

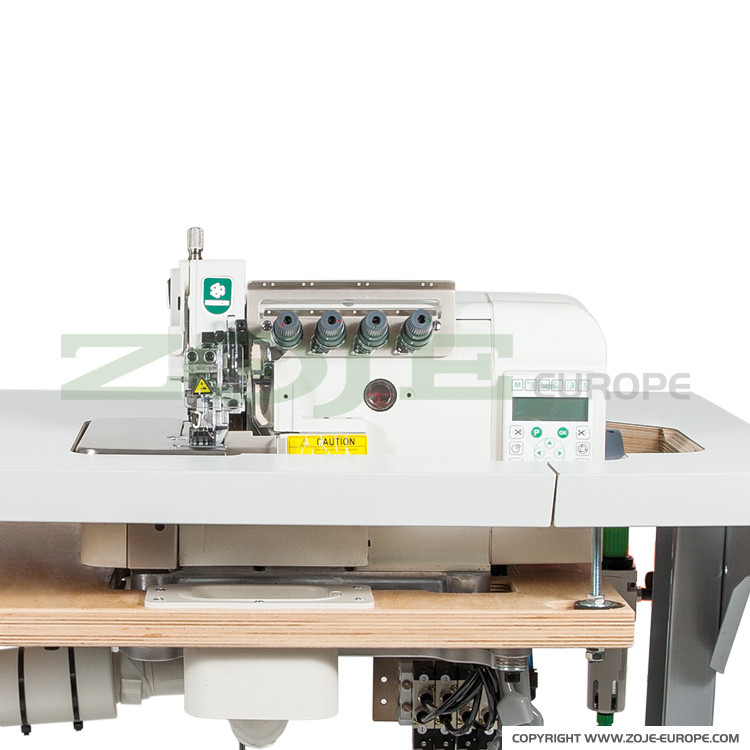

ZOJE ZJ933-38-PD3

5-thread automatic overlock (safety stitch) machine, light and medium materials, direct drive needle bar, built-in Servo motor and control box - machine head

Compare products

Description:

900 series is flagship ZOJE overlock series. 2-needle / 5-thread overlock machine (stitch type 516) for light and medium materials. Serial equipped with automatic functions: thread trimmer, pneumatic foot lifter, needle positioning. Equipped with energy-saving LED lamp for lighting of working field.

Model with energy-saving AC Servo motor, control box, programming control panel and power switch integrated into machine head (mechatronic "all-in-one" set). Thanks to integration of all elements the machine works quietly and without adverse vibrations. AC Servo motor saves up to 70% energy comparing to a conventional electronic motor or clutch motor. Equipped with vortex fan which sucks the external air and ensures more efficient cooling.

Needles gauge 3 mm, seam width 5 mm (8 mm with safety stitch), max. sewing speed 7.000 s.p.m., differential bottom feed, direct drive type needle bar and improved central lubrication.

For this machine we recommend SCHMETZ needles system B-27 with correct needle points, depending on the fabric.

Technical specification:

Type of sewing material light, medium
Built-in motor (direct drive) yes
Number of threads 5
Automatic needle positioning
Automatic thread trimming
Automatic foot lifter
Automatic bartacking
Overedging width 5 mm
Total seam width 8 mm
Presser foot lift height 6 mm
Max. sewing speed
Needle system B-27
Kit head with built-in Servo motor and programming control panel
