Sewing machines

Overlock (safety stitch) machines 5-thread

5-thread automatic overlock (safety stitch) machine, light and medium materials, built-in Servo motor, control box - complete sewing machine

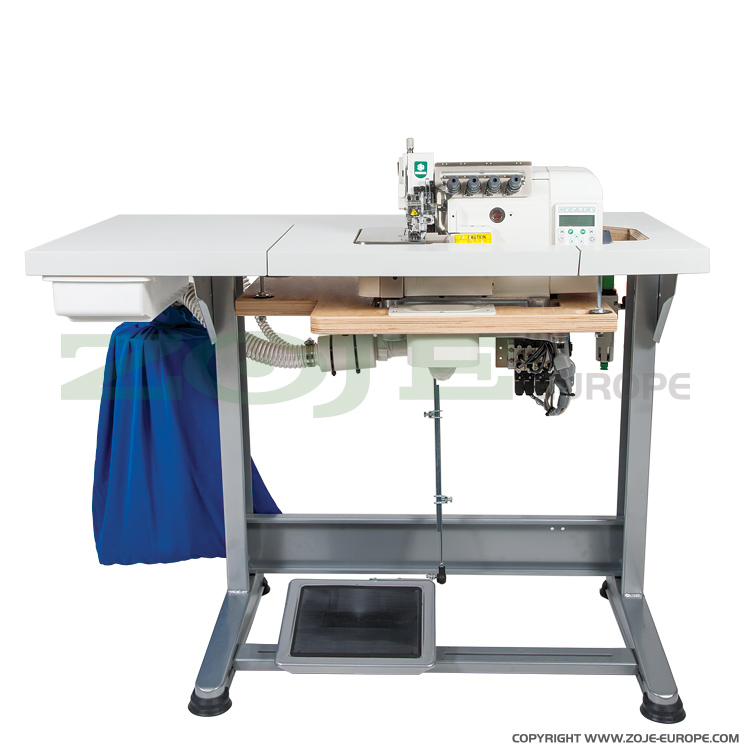

ZOJE ZJ933-38-PD3 SET

5-thread automatic overlock (safety stitch) machine, light and medium materials, built-in Servo motor, control box - complete sewing machine

Compare products

Description:

900 series is flagship ZOJE overlock series. 2-needle / 5-thread overlock (safety stitch) machine (stitch type 516) for light and medium materials. Serial equipped with automatic functions: thread trimmer, pneumatic foot lifter, needle positioning. Equipped with energy-saving LED lamp for lighting of working field.

Model with energy-saving AC Servo motor, control box, programming control panel and power switch integrated into machine head (mechatronic "all-in-one" set). Thanks to integration of all elements the machine works quietly and without adverse vibrations. AC Servo motor saves up to 70% energy comparing to a conventional electronic motor or clutch motor. Equipped with vortex fan which sucks the external air and ensures more efficient cooling.

Needles gauge 3 mm, seam width 5 mm (8 mm with safety stitch), max. sewing speed 7.500 s.p.m., differential bottom feed, direct drive type needle bar and improved central lubrication.

Complete sewing machine with Kessler stand and table top.

For this machine we recommend SCHMETZ needles system B-27 with correct needle points, depending on the fabric.

Technical specification:

Type of sewing material light, medium
Built-in motor (direct drive) yes
Number of threads 5
Automatic needle positioning
Automatic thread trimming
Automatic foot lifter
Automatic bartacking
Overedging width 5 mm
Total seam width 8 mm
Presser foot lift height 6 mm
Max. sewing speed
Needle system B-27
Kit complete set
