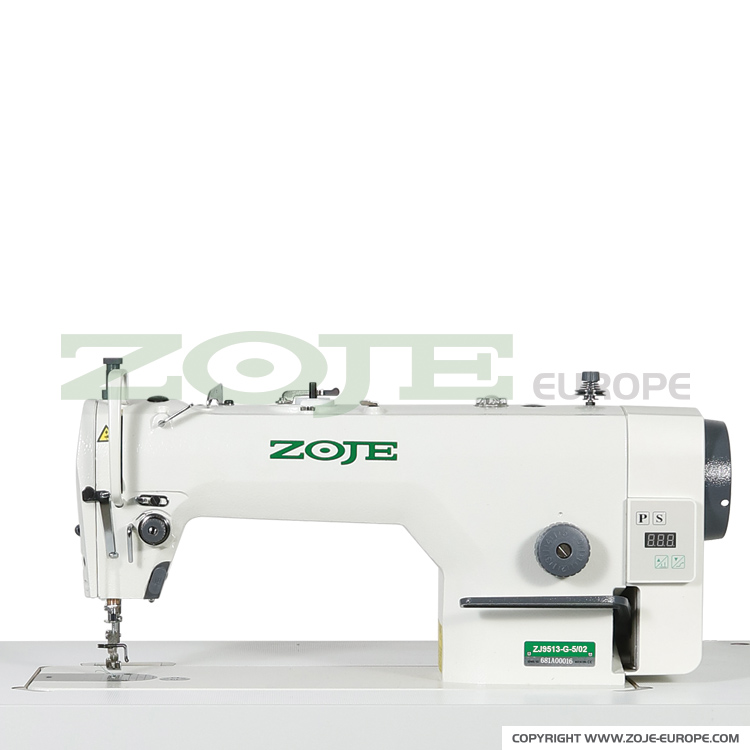

Lockstitch machine for heavy materials, with built-in AC Servo motor and control box, with needle positioning - machine head
1-needle lockstitch machine for heavy materials. Model with energy-saving AC Servo motor, control box and power switch integrated into machine head (mechatronic "all-in-one" set). Thanks to integration of all elements the machine works quietly and without adverse vibrations. AC Servo motor saves up to 70% energy comparing to a conventional electronic motor or clutch motor. Equipped with vortex fan which sucks the external air and ensures more efficient cooling.
Bottom feed, max. sewing speed 3.500 s.p.m., max. stitch length 5 mm, foot lifting up to 13 mm, central lubrication, automatic needle positioning.
For this machine we recommend SCHMETZ needles system 135x5 or 135x5 SERV7, with correct needle points, depending on the fabric.
|Type of sewing material||heavy|
|Type of feed||bottom|
|Built-in motor (direct drive)||yes|
|Automatic needle positioning||yes|
|Automatic thread trimming||no|
|Automatic foot lifter||no|
|Type of lubrication||central circuit|
|Stitch compensation button||no|
|LED lighting of working field||yes|
|Max. stitch length||5 mm|
|Presser foot lift height||13 mm|
|Max. sewing speed||3500 s.p.m.|
