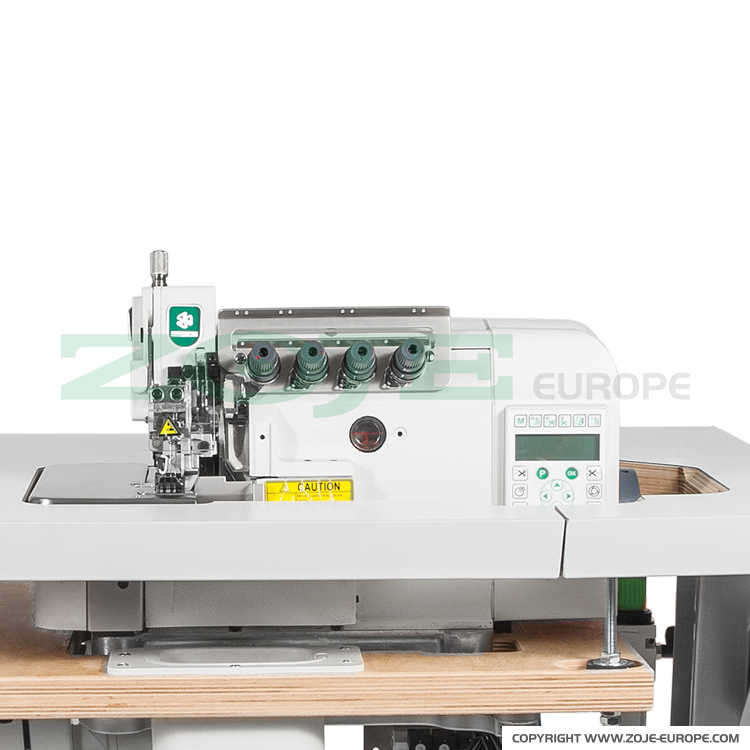

4-thread automatic overlock (safety stitch) machine, light and medium materials, direct drive needle bar, built-in Servo motor and control box - machine head
900 series is flagship ZOJE overlock series. 2-needle / 4-thread overlock (safety stitch) machine (stitch type 514) for light and medium materials. Serial equipped with automatic functions: thread trimmer, pneumatic foot lifter, needle positioning. With energy-saving LED lamp for lighting of working field.
Model with energy-saving AC Servo motor, control box, programming control panel and power switch integrated into machine head (mechatronic "all-in-one" set). Thanks to integration of all elements the machine works quietly and without adverse vibrations. AC Servo motor saves up to 70% energy comparing to a conventional electronic motor or clutch motor. Equipped with vortex fan which sucks the external air and ensures more efficient cooling.
Needles gauge 2 mm, seam width 4 mm (6 mm with safety stitch), max. sewing speed 7.000 s.p.m., differential bottom feed, direct drive type needle bar and improved central lubrication.
For this machine we recommend SCHMETZ needles system B-27 with correct needle points, depending on the fabric.
|Type of sewing material||light, medium|
|Built-in motor (direct drive)||yes|
|Number of threads||4|
|Automatic needle positioning||yes|
|Automatic thread trimming||yes|
|Automatic foot lifter||yes|
|Overedging width||4 mm|
|Total seam width||6 mm|
|Presser foot lift height||–|
|Max. sewing speed||–|
