Sewing machines

Overlock (safety stitch) machines 4-thread

4-thread automatic overlock (safety stitch) machine, light and medium materials, direct drive needle bar, built-in Servo motor and control box - complete

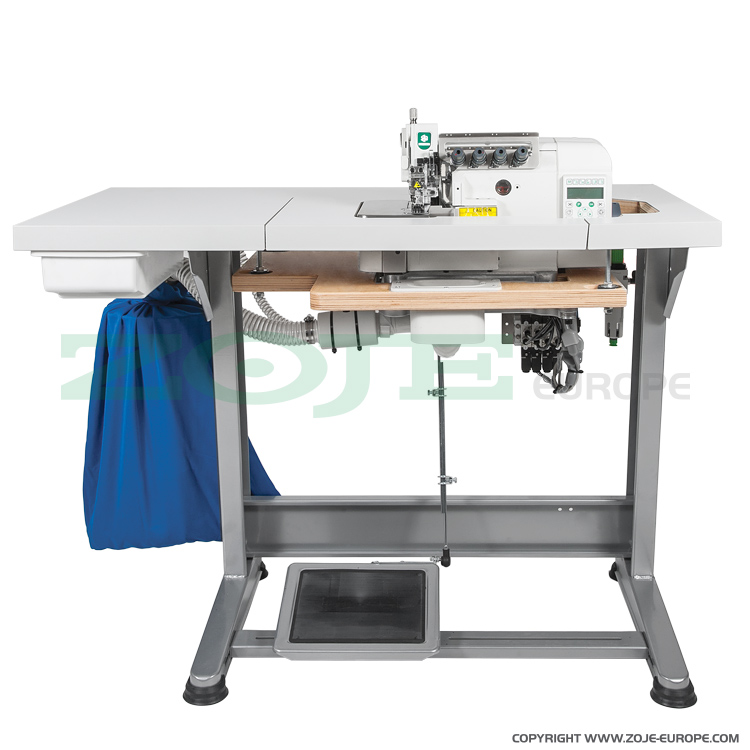

ZOJE ZJ953-13-PD3 SET

4-thread automatic overlock (safety stitch) machine, light and medium materials, direct drive needle bar, built-in Servo motor and control box - complete

Compare products

Description:

900 series is flagship ZOJE overlock series. 2-needle / 4-thread overlock (safety stitch) machine (stitch type 514) for light and medium materials. Serial equipped with automatic functions: thread trimmer with integrated suction for fabric leftovers, pneumatic foot lifter, needle positioning. Equipped with energy-saving LED lamp for lighting of working field.

Model with energy-saving AC Servo motor, control box, programming control panel and power switch integrated into machine head (mechatronic "all-in-one" set). Thanks to integration of all elements the machine works quietly and without adverse vibrations. AC Servo motor saves up to 70% energy comparing to a conventional electronic motor or clutch motor. Equipped with vortex fan which sucks the external air and ensures more efficient cooling.

Needles gauge 2 mm, seam width 4 mm (6 mm with safety stitch), max. sewing speed 7.000 s.p.m., differential bottom feed, direct drive type needle bar and improved central lubrication.

Complete sewing machine with Kessler stand and table top.

For this machine we recommend SCHMETZ needles system B-27 with correct needle points, depending on the fabric.

Technical specification:

Type of sewing material light, medium
Built-in motor (direct drive) yes
Number of threads 4
Automatic needle positioning yes
Automatic thread trimming yes
Automatic foot lifter yes
Automatic bartacking no
Overedging width 4 mm
Total seam width 6 mm
Top feed no
Presser foot lift height
Max. sewing speed
Needle system B-27
Kit complete set
