Sewing machines

1-needle post-bed lockstitch machines

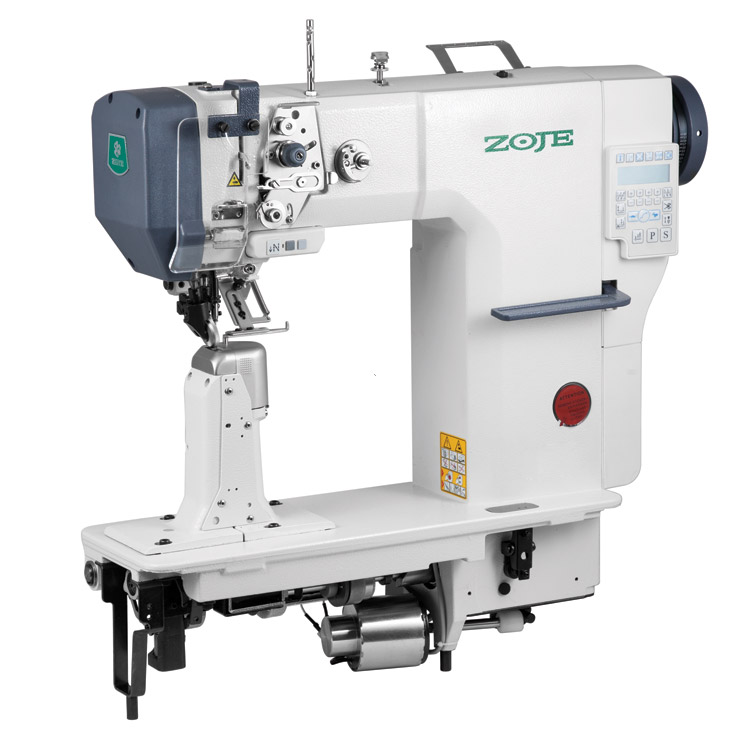

Automatic post-bed lockstitch machine for medium and heavy material with bottom, needle and upper roller feed, with AC Servo motor - complete machine

ZOJE ZJ9610SA-D3-M-3 SET

Automatic post-bed lockstitch machine for medium and heavy material with bottom, needle and upper roller feed, with AC Servo motor - complete machine

Compare products

Description:

1-needle automatic post-bed lockstitch machine for medium and heavy material with bottom roller feed, needle feed and active roll presser foot (roll on the left side of the needle). With energy-saving AC Servo motor. Serial equipped with automatic functions: electromagnetic thread trimmer, reverse feeding with programmed size of the initial and final bartack, needle positioning, programming control panel and integrated 3-degree, energy-saving LED lamp for lighting of working field.

For sewing medium and heavy fabrics. Designed for sewing in hard to get places in production of sports and leather shoes, fancy leather goods etc.

Max. sewing speed 3.000 s.p.m., max. stitch length 4.5 mm, foot lifting up to 7 mm (hand lifter) or 10 mm (foot lifter), post height 17 cm, central lubrication.

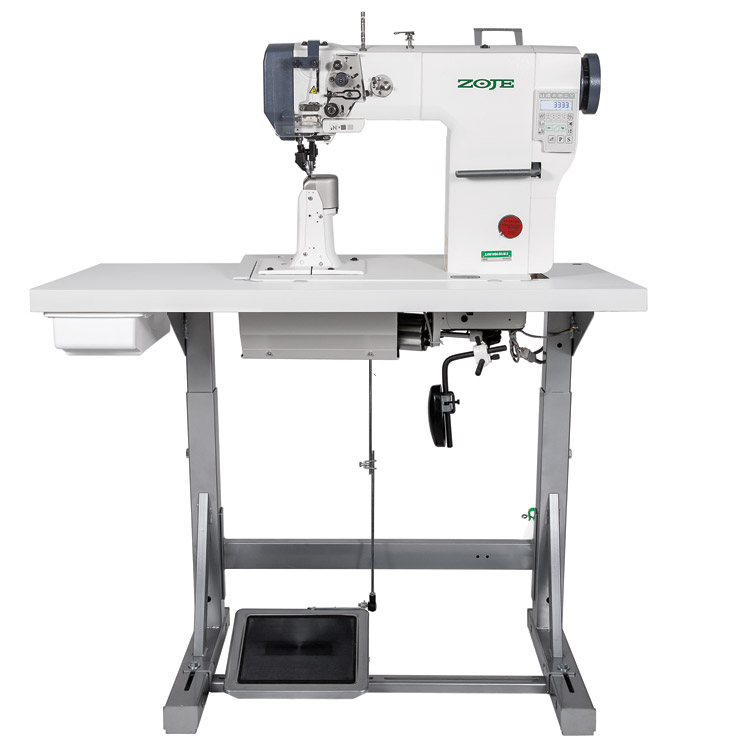

Complete sewing machine with Kessler stand and table top.

For this machine we recommend SCHMETZ needles system 135x5 or 135x5 SERV7, with correct needle points, depending on the fabric.

Technical specification:

Type of sewing material medium, heavy
Type of feed bottom, roller
Built-in motor (direct drive) yes
Automatic needle positioning yes
Automatic thread trimming yes
Automatic foot lifter yes
Automatic bartacking yes
LED lighting of working field yes
Max. stitch length 4.5 mm
Post height
Presser foot lift height 10 mm
Max. sewing speed 3000 s.p.m.
Needle system 135x5
Kit complete set
