Sewing machines

2-needle post-bed lockstitch machines

2-needle post-bed lockstitch machine with bottom, needle & upper roller feed, automatic thread trimmer, built in motor & control box (Mechatronic)- machine head

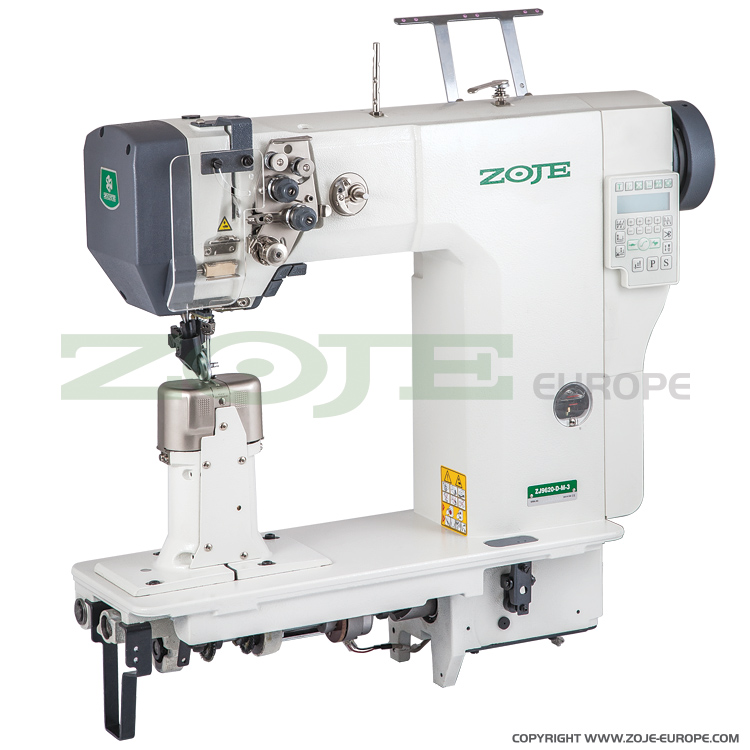

ZOJE ZJ9620-D-M-3-01

2-needle post-bed lockstitch machine with bottom, needle & upper roller feed, automatic thread trimmer, built in motor & control box (Mechatronic)- machine head

Compare products

Description:

2-needle post-bed lockstitch machine with bottom roller feed and active roll presser foot (roll on the left side of the needle). Equipped with electromagnetic thread trimmer.

For sewing medium and heavy fabrics.

Machine with built in energy-saving AC Servo motor and control box (Mechatronic), and automatic needle positioning (top - bottom). AC Servo motor saves up to 70% energy comparing to a conventional electronic motor or clutch motor. Ensures quiet work without adverse vibration.

Designed for sewing in hard to get places in production of sports and leather shoes, fancy leather goods etc. Equipped with energy-saving LED lamp for lighting of working field.

Needles gauge 1.2-1.8 mm, with possibility to change to 2.0-2.4 mm by changing the needle plate (to be purchased separately). Max. sewing speed 2.000 s.p.m., max. stitch length 3.6 mm, foot lifting up to 7 mm (hand lifter) or 10 mm (foot lifter), post height 17 cm, central lubrication.

For this machine we recommend SCHMETZ needles system 135x5 or 135x5 SERV7, with correct needle points, depending on the fabric.

Technical specification:

Type of sewing material medium, heavy
Type of feed bottom, roller
Built-in motor (direct drive) yes
Automatic needle positioning
Automatic thread trimming yes
Automatic foot lifter
Automatic bartacking
LED lighting of working field yes
Max. stitch length 3.6 mm
Post height 17 cm
Presser foot lift height 10 mm
Max. sewing speed 2000 s.p.m.
Needle system 134-35
Kit head with built-in Servo motor and programming control panel
