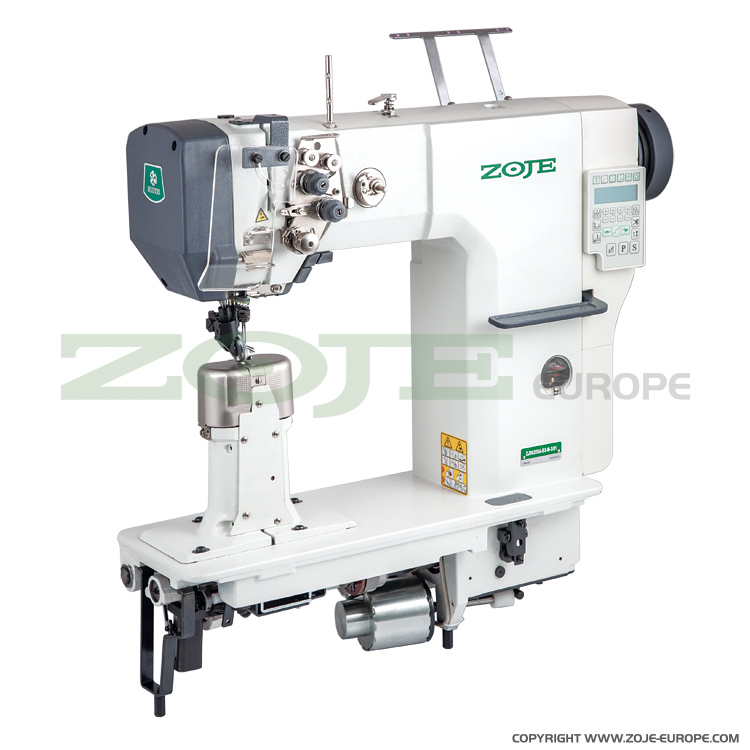

ZOJE ZJ9620SA-D3-H-N1.8-3 SET
Automatic 2-needle post-bed lockstitch machine with bottom and upper roller feed, with AC Servo motor - complete sewing machine
2-needle automatic post-bed lockstitch machine with bottom roller feed and active roll presser foot (roll on the left side of the needle). With built-in energy-saving AC Servo motor and control panel. Serial equipped with automatic functions: electromagnetic thread trimmer, foot lifter, reverse feeding with programmed size of the initial and final bartack, needles positioning, programming control panel and energy-saving LED lamp for lighting of working field.
For sewing thick fabrics. Designed for sewing in hard to get places in production of sports and leather shoes, fancy leather goods etc.
Needles gauge 1.2-1.8 mm, with possibility to change to 2.0-2.4 mm by changing the needle plate (to be purchased separately). Max. sewing speed 2.000 s.p.m., max. stitch length 3.6 mm, foot lifting up to 7 mm (hand lifter) or 10 mm (foot lifter), post height 17 cm, central lubrication.
Complete sewing machine with Kessler stand and table top.
For this machine we recommend SCHMETZ needles system 134-35 or 134-35 SERV7, with correct needle points, depending on the
|Type of sewing material||–|
|Type of feed||–|
|Built-in motor (direct drive)||–|
|Automatic needle positioning||–|
|Automatic thread trimming||–|
|Automatic foot lifter||–|
|LED lighting of working field||–|
|Max. stitch length||–|
|Presser foot lift height||–|
|Max. sewing speed||–|
