Sewing machines

2-needle post-bed lockstitch machines

Automatic 2-needle post-bed lockstitch machine with bottom and upper roller feed, with AC Servo motor - machine head

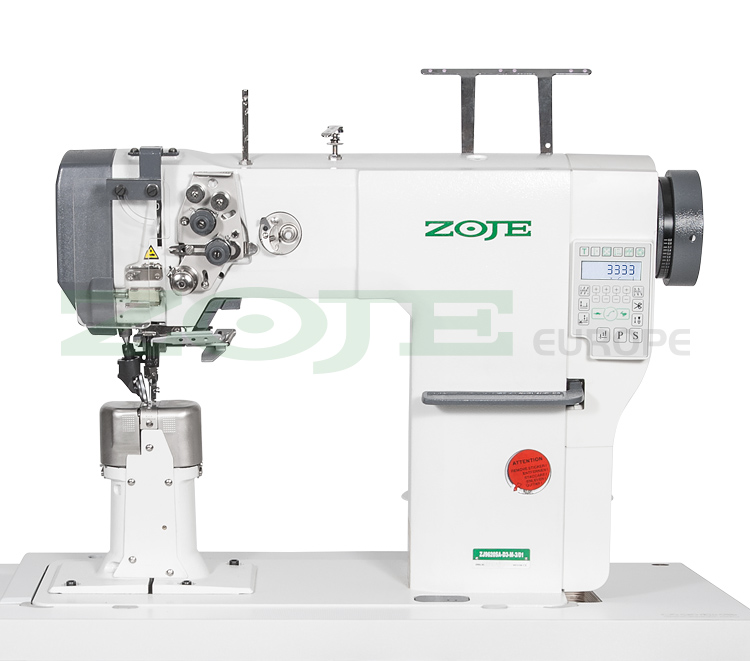

ZOJE ZJ9620SA-D3-M-N2.4-3

Automatic 2-needle post-bed lockstitch machine with bottom and upper roller feed, with AC Servo motor - machine head

Compare products

Description:

2-needle automatic post-bed lockstitch machine with bottom roller feed and active roll presser foot (roll on the left side of the needle). With built-in energy-saving AC Servo motor and control panel. Serial equipped with automatic functions: electromagnetic thread trimmer, foot lifter, reverse feeding with programmed size of the initial and final bartack, needles positioning, programming control panel and energy-saving LED lamp for lighting of working field.

For sewing medium and heavy fabrics. Designed for sewing in hard to get places in production of sports and leather shoes, fancy leather goods etc.

Needles gauge 2.0-2.4 mm, with possibility to change to 1.2-1.8 mm by changing the needle plate (to be purchased separately). Max. sewing speed 2.000 s.p.m., max. stitch length 3.6 mm, foot lifting up to 7 mm (hand lifter) or 10 mm (foot lifter), post height 17 cm, central lubrication.

For this machine we recommend SCHMETZ needles system 134-35 or 134-35 SERV7, with correct needle points, depending on the fabric.

Technical specification:

Type of sewing material medium and heavy
Type of feed bottom, roller
Built-in motor (direct drive) yes
Automatic needle positioning yes
Automatic thread trimming yes
Automatic foot lifter yes
Automatic bartacking yes
LED lighting of working field yes
Max. stitch length 3.6 mm
Post height 17 cm
Presser foot lift height 10 mm
Max. sewing speed 2000 s.p.m.
Needle system 134-35
Kit head with built-in Servo motor and programming control panel
