ZOJE ZJ9701LAR-D3-460/PF SET

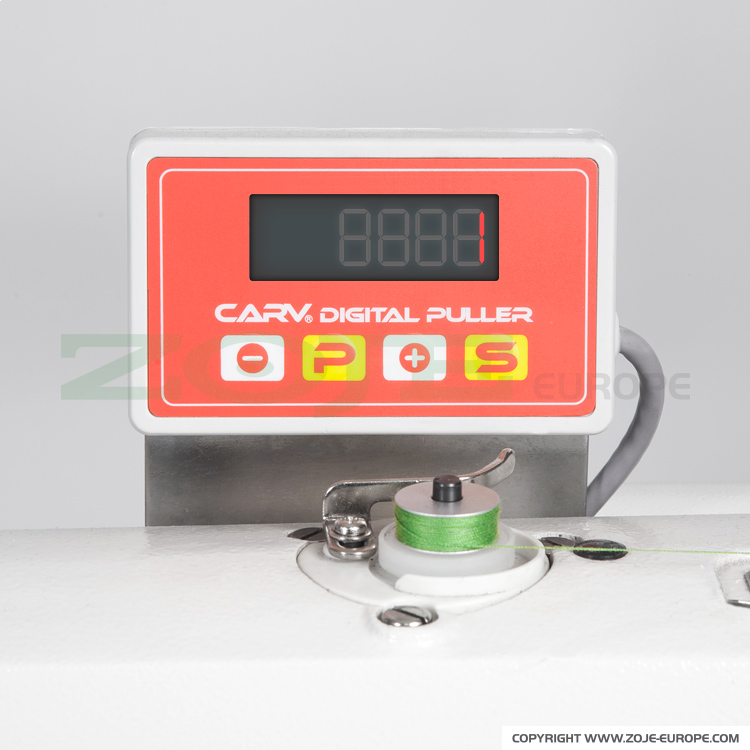

Automatic long arm lockstitch machine with a puller - the complete sewing machine
ZOJE ZJ9701LAR-D3-460/PF SET is a 1-needle long arm lockstitch machine with puller supporting material feeding and energy-saving AC Servo motor built-in into machine head.
Serial equipped with automatic functions:
- thread trimmer,
- foot lifter,
- reverse feeding with programmed size of the initial and final bartack,
- needle positioning and with programming control panel and integrated 3-degree,
- energy-saving LED lamp for lighting of working field.
Machine designed for sewing light and medium materials with large areas.
- distance between needle bar and machine's arm is 46 cm,
- bottom feed,
- max. sewing speed 4.000 s.p.m.,
- max. stitch length 5 mm,
- foot lifting up to 13 mm,
- central lubrication.

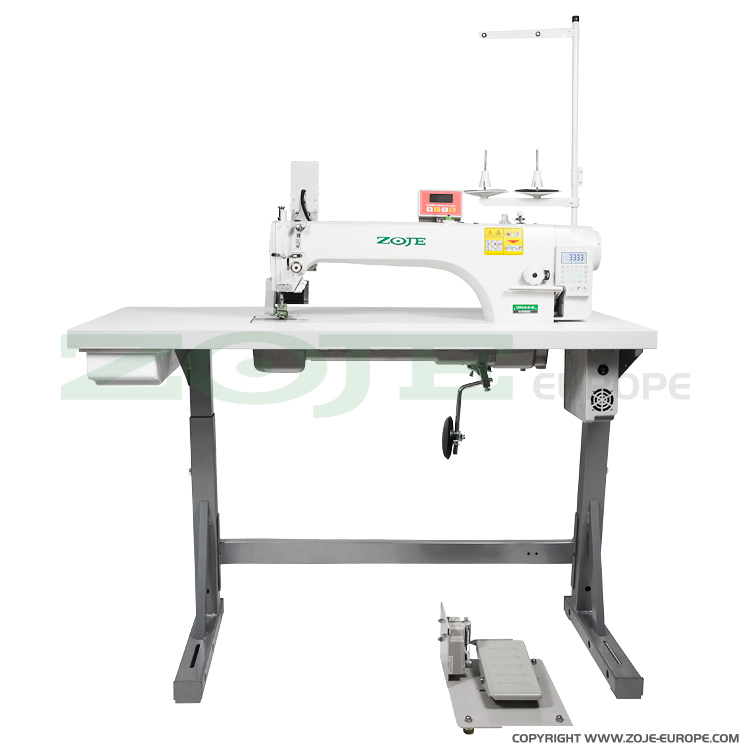

Complete sewing machine with KESSLER stand and table top.
For this machine we recommend SCHMETZ needles system 135x5 or 135x5 SERV 7, with correct needle points, depending on the fabric.
|Type of sewing material||light, medium|
|Type of feed||bottom|
|Built-in motor (direct drive)||yes|
|Automatic needle positioning||yes|
|Automatic thread trimming||yes|
|Automatic foot lifter||yes|
|Distance: needle bar - machine's arm||46 cm|
|LED lighting of working field||yes|
|Max. stitch length||5 mm|
|Presser foot lift height||13 mm|
|Max. sewing speed||4000 s.p.m.|
