ZOJE ZJ9701LAR-D3-460/PF SET

Automatic long arm lockstitch machine with puller - complete sewing machine

Compare products

Description:

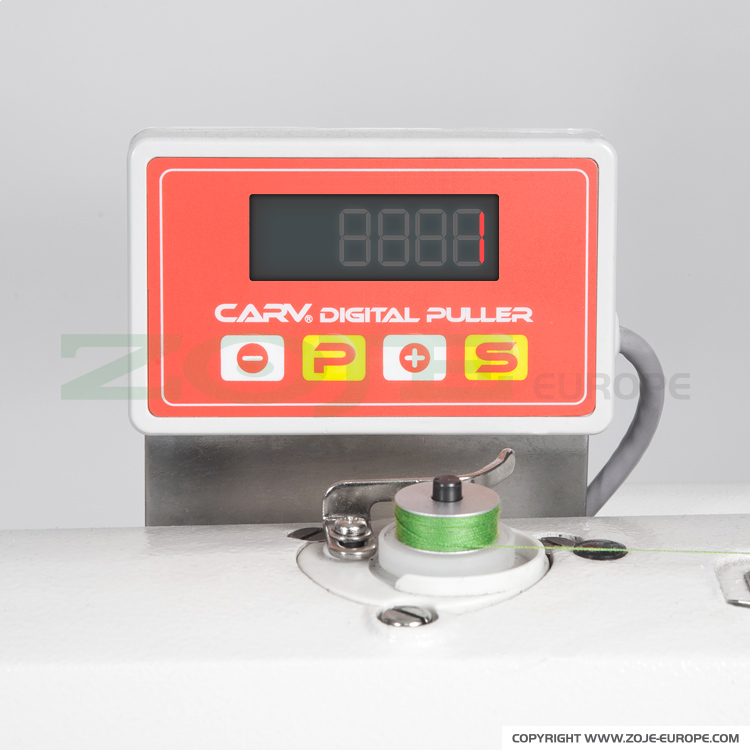

1-needle long arm lockstitch machine with puller supporting material feeding and energy-saving AC Servo motor built-in into machine head. Serial equipped with automatic functions: thread trimmer, foot lifter, reverse feeding with programmed size of the initial and final bartack, needle positioning and with programming control panel and integrated 3-degree, energy-saving LED lamp for lighting of working field.

Machine designed for sewing light and medium materials with large areas.

Distance between needle bar and machine's arm is 46 cm, bottom feed, max. sewing speed 4.000 s.p.m., max. stitch length 5 mm, foot lifting up to 13 mm, central lubrication.

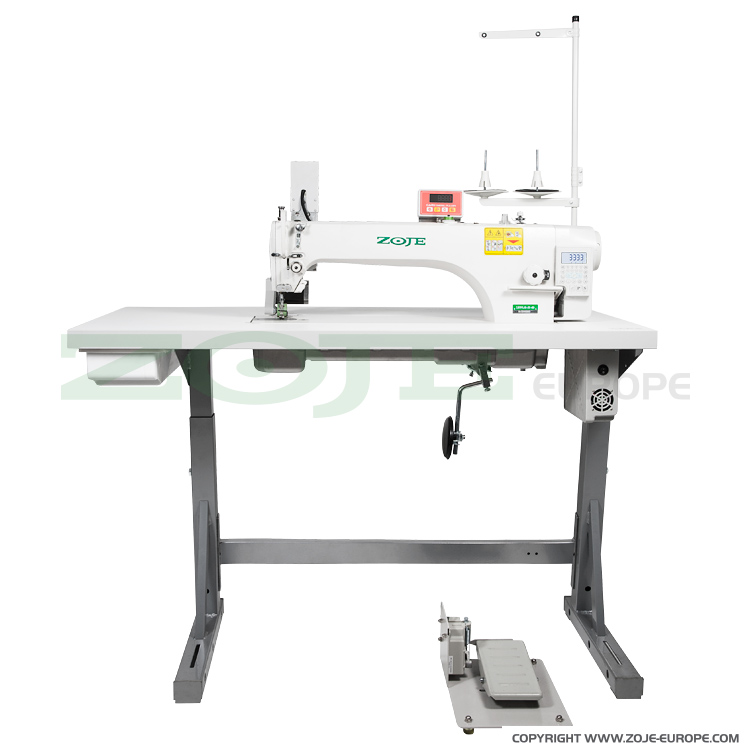

Complete sewing machine with Kessler stand and table top.

For this machine we recommend SCHMETZ needles system 135x5 or 135x5 SERV 7, with correct needle points, depending on the fabric.

Technical specification:

Type of sewing material light, medium
Type of feed bottom
Built-in motor (direct drive) yes
Automatic needle positioning yes
Automatic thread trimming yes
Automatic foot lifter yes
Automatic bartacking yes
Wiper no
Distance: needle bar - machine's arm 46 cm
LED lighting of working field yes
Max. stitch length 5 mm
Presser foot lift height 13 mm
Max. sewing speed 4000 s.p.m.
Needle system 16x231
Kit complete set
