1-needle flat bed lockstitch machines with bottom feed

Automatic lockstitch machine for light and medium materials, with built-in AC Servo motor and control box - complete machine

ZOJE ZJ9703AR-D4J/02 SET

Automatic lockstitch machine for light and medium materials, with built-in AC Servo motor and control box - complete machine

Compare products

Description:

Automatic 1-needle lockstitch machine for light and medium materials. Serial equipped with automatic functions: thread trimmer, reverse feeding with programmed size of the initial and final bartack, foot lifter, needle positioning and controller of initial stitch. Integrated 3 degrees adjustable brightness energy-saving LED lamp for lighting of working field.

Model with energy-saving AC Servo motor, control box, programming control panel and power switch integrated into machine head (mechatronic "all-in-one" set). Thanks to integration of all elements the machine works quietly and without adverse vibrations. AC Servo motor saves up to 70% energy comparing to a conventional electronic motor or clutch motor.

Bottom feed, max. sewing speed 5.000 s.p.m., max. stitch length 5 mm, foot lifting up to 13 mm, central lubrication.

For this machine we recommend SCHMETZ needles system 135x5 or 135x5 SERV7, with correct needle points, depending on the fabric.

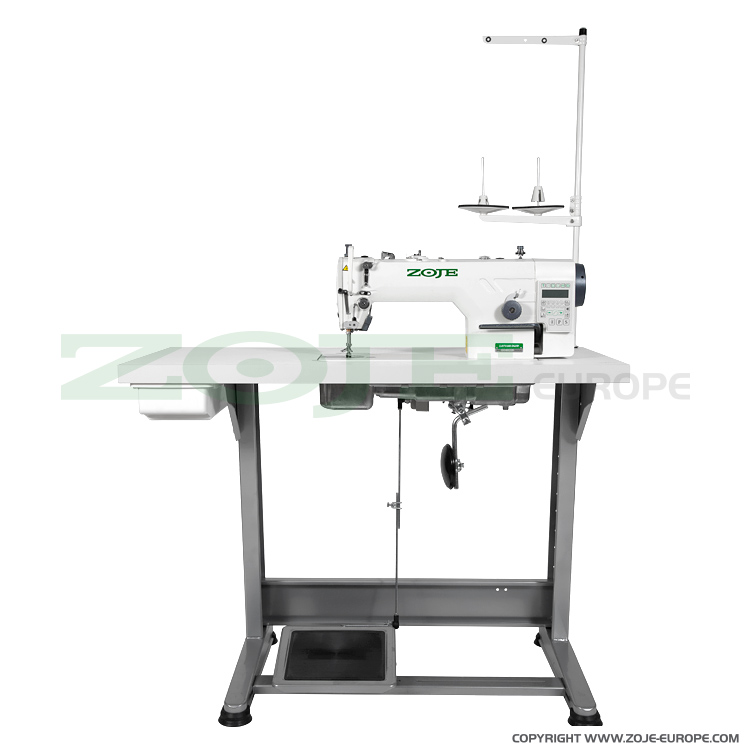

Complete sewing machine with Kessler stand and table top.

Technical specification:

Type of sewing material light, medium
Type of feed bottom
Built-in motor (direct drive) yes
Automatic needle positioning yes
Automatic thread trimming yes
Automatic foot lifter yes
Automatic bartacking yes
Wiper no
Type of lubrication central circuit
Stitch compensation button yes
Side trimmer no
LED lighting of working field yes
Max. stitch length 5 mm
Presser foot lift height 13 mm
Max. sewing speed 5000 s.p.m.
Needle system 135x5
Kit complete set
